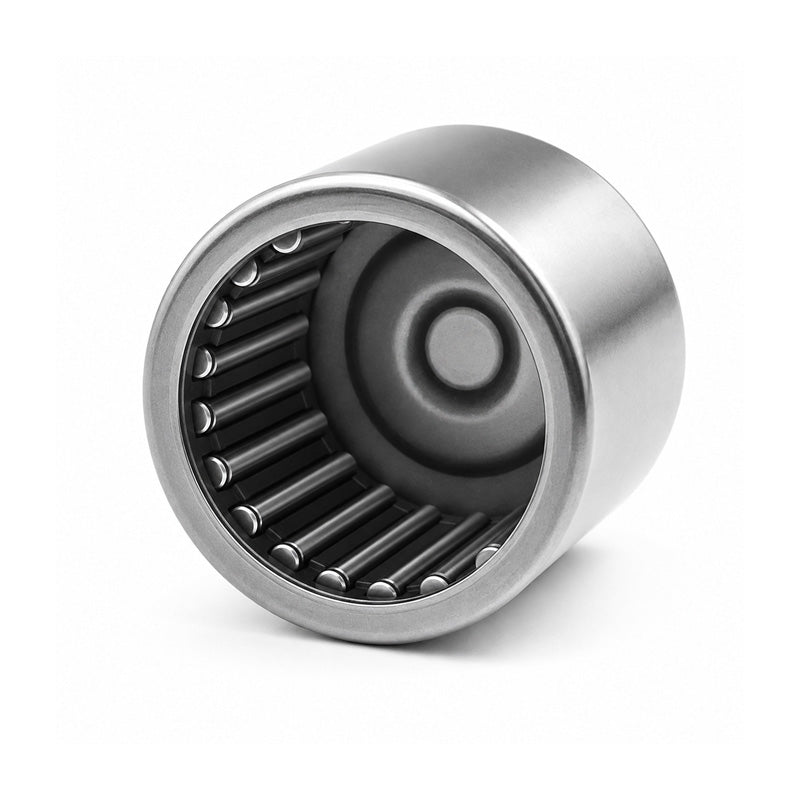

• BHAM108 Needle Roller Bearing 5/8x7/8x1/2 inch
1 1

SKU: BHAM.108

BHAM108 Needle Roller Bearing 5/8x7/8x1/2 inch

BHAM108 Needle Roller Bearing 5/8x7/8x1/2 inch
Rs. 655.46
Rs. 655.46
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 583.36
19+ Rs. 550.59
29+ Rs. 544.03
39+ Rs. 537.48
49+ Rs. 530.92
74+ Rs. 524.37
99+ Rs. 491.60
199+ Rs. 485.04
249+ Rs. 478.49
499+ Rs. 471.93
999+ Rs. 458.82
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:
IKO - High Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
22.23mm = 0.875 (7/8) inch
Width:
12.7mm = 0.5 (1/2) inch
Technical
Fw 5/8 inch
D 7/8 inch
C 1/2 inch
Dynamic Load Cor 6680 N
Static Load Cr 8020 N
Weight 0.0139 kg
