SKU: BF25-MB

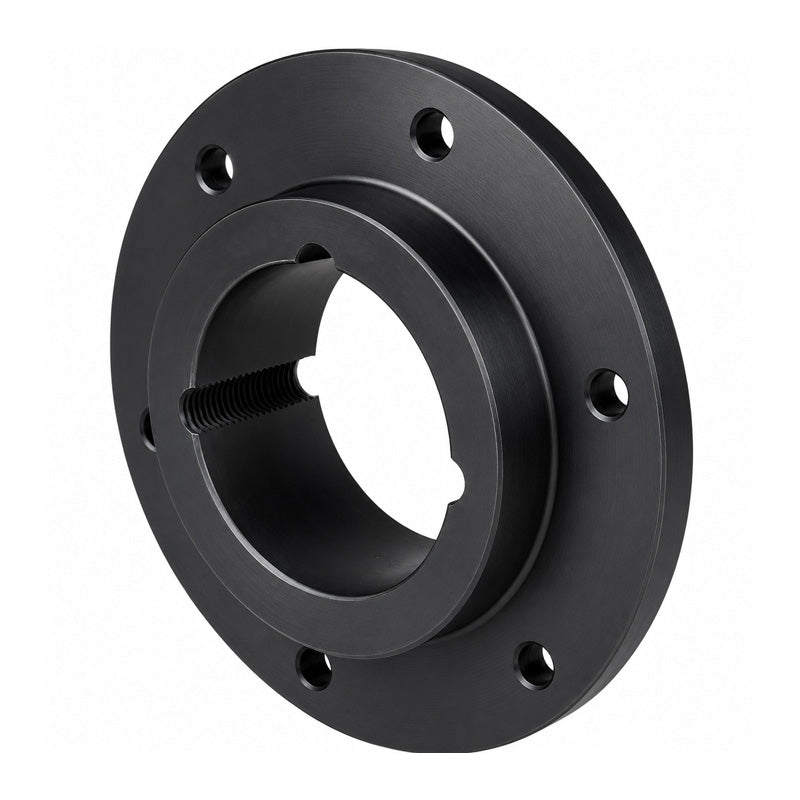

Major Brand BF25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Brand BF25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 6,512.31
Regular price
Sale price
Rs. 6,512.31
Taxes included.
In stock
Price Break
10+
Rs. 5,795.96
19+
Rs. 5,470.34
29+
Rs. 5,405.22
39+
Rs. 5,340.09
49+
Rs. 5,274.97
74+
Rs. 5,209.85
99+
Rs. 4,884.23
199+
Rs. 4,819.11
249+
Rs. 4,753.99
499+
Rs. 4,688.86
999+
Rs. 4,558.62
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 185mm
- Width:
- 44mm
Technical
Technical
| Hub Reference | BF25 |
|---|---|
| Bush Number | 2517 |
| A | 185mm |
| B | 130mm |
| C | 155mm |
| D | 44mm |
| E | 11.5mm |
| F | 120mm |
| G | 119mm |
| H | 20mm |
| J | 6 x 10.5mm |
