SKU: BB-RT-01-100-ES

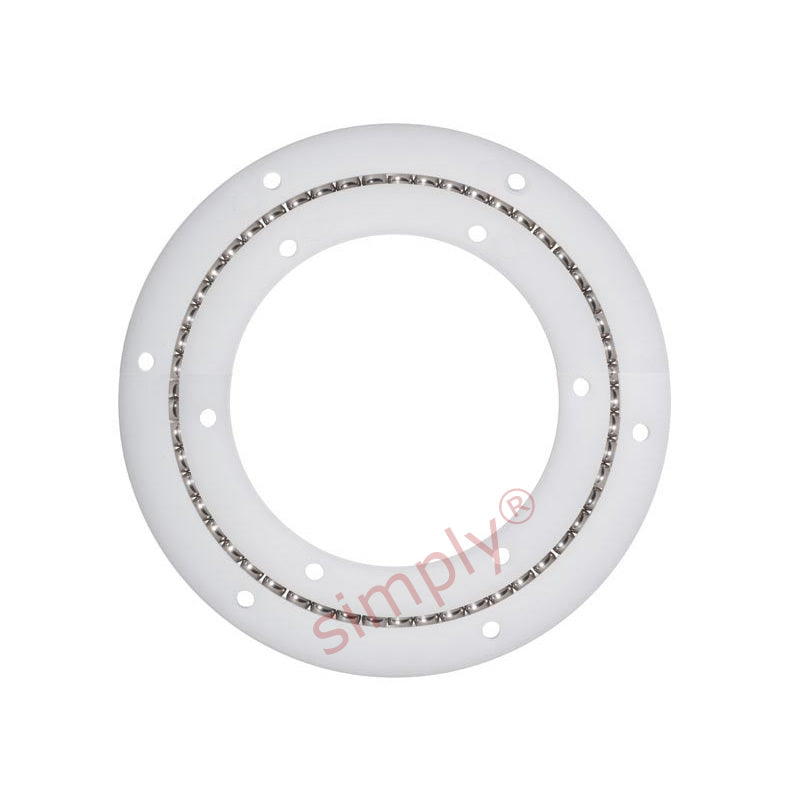

xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
Regular price
Rs. 43,036.07
Regular price
Sale price
Rs. 43,036.07
Taxes included.
In stock
Price Break
10+
Rs. 38,302.10
19+
Rs. 36,150.30
29+
Rs. 35,719.94
39+
Rs. 35,289.58
49+
Rs. 34,859.22
74+
Rs. 34,428.86
99+
Rs. 32,277.05
199+
Rs. 31,846.69
249+
Rs. 31,416.33
499+
Rs. 30,985.97
999+
Rs. 30,125.25
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 160mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 160mm |
|---|---|
| D1 | 150mm |
| d | 100mm |
| d1 | 110mm |
| H | 20mm |
| h | 5mm |
| T | 60 degrees |
| K1 | 5.2mm |
| K2 | 5.2mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
