SKU: BB-608-A500-70-ES

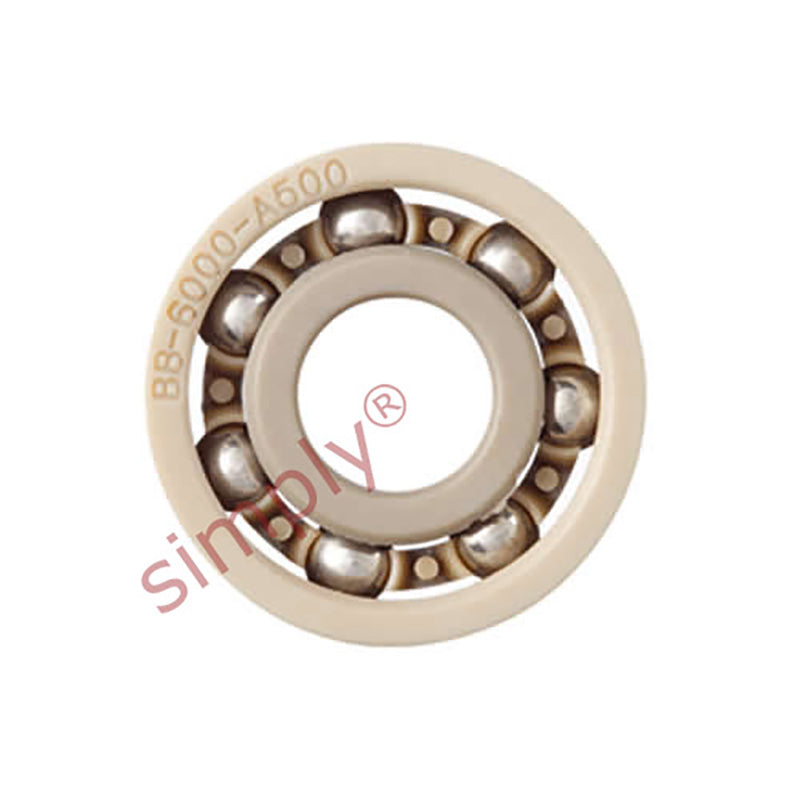

xiros xirodur BB608A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 8x22x7mm - Allow 2-3 Days
xiros xirodur BB608A50070ES Open Type Polymer Ball Bearing with PEEK Cage and Stainless Steel Balls 8x22x7mm - Allow 2-3 Days
Regular price
Rs. 4,938.02
ex VAT
Regular price
Sale price
Rs. 4,938.02
ex VAT
In stock
Price Break
10+
Rs. 4,394.84
19+
Rs. 4,147.94
29+
Rs. 4,098.56
39+
Rs. 4,049.18
49+
Rs. 3,999.80
74+
Rs. 3,950.42
99+
Rs. 3,703.52
199+
Rs. 3,654.13
249+
Rs. 3,604.75
499+
Rs. 3,555.37
999+
Rs. 3,456.61
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PEEK cages and stainless steel balls. The inner rings, outer rings and cages of these bearings are made of FDA-compliant plastics making these bearings suitable for use in the food industry. These bearings are suitable for high temperatures up to +150 deg C. Benefits: Made of FDA approved plastics, lubrication- and maintenance-free, corrosion-resistant, non-magnetic, washable, lightweight, high-temperature range, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 22mm |
| b1 | 7mm |
| Max static axial load | 220 N |
| Static load capacity | 72 N |
| Dynamic load capacity | 97 N |
| Max speed | 2700 rpm |
| Race | A500 |
| Cage | PEEK |
| Ball material | Stainless Steel |
