SKU: BB-6003-B180-10-ES-C

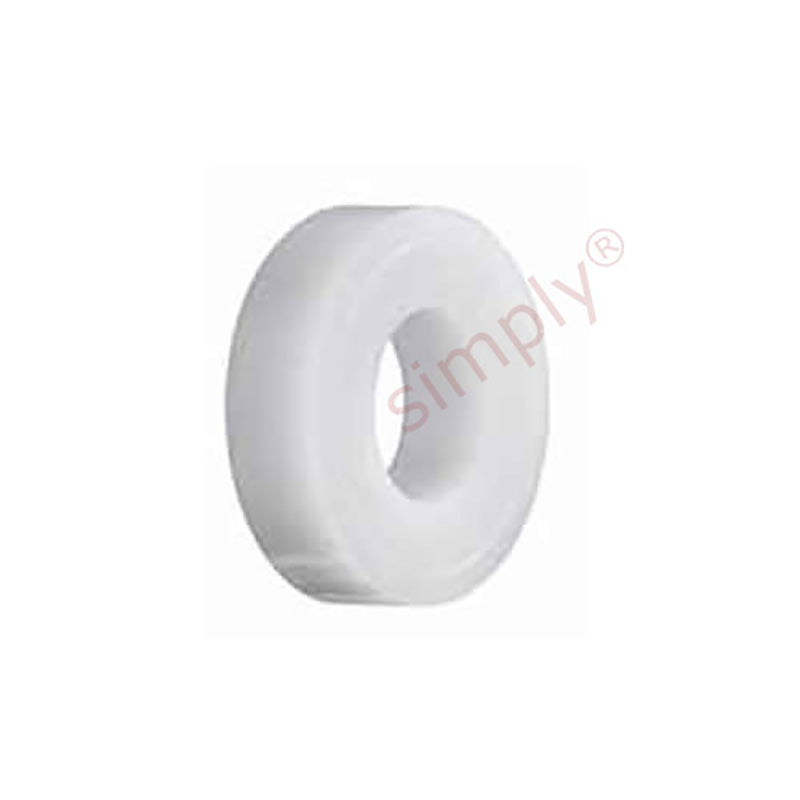

xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 2-3 Days
xiros xirodur BB6003B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 17x35x10mm - Allow 2-3 Days
Regular price
Rs. 5,182.20
Regular price
Sale price
Rs. 5,182.20
Taxes included.
In stock
Price Break
10+
Rs. 4,612.16
19+
Rs. 4,353.05
29+
Rs. 4,301.23
39+
Rs. 4,249.40
49+
Rs. 4,197.58
74+
Rs. 4,145.76
99+
Rs. 3,886.65
199+
Rs. 3,834.83
249+
Rs. 3,783.01
499+
Rs. 3,731.18
999+
Rs. 3,627.54
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, stainless steel balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical
| d1 | 17mm |
|---|---|
| d2 | 35mm |
| b | 10mm |
| Max static axial load | 360 N |
| Static load capacity | 180 N |
| Dynamic load capacity | 250 N |
| Max speed | 1400 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
