SKU: BAM.910

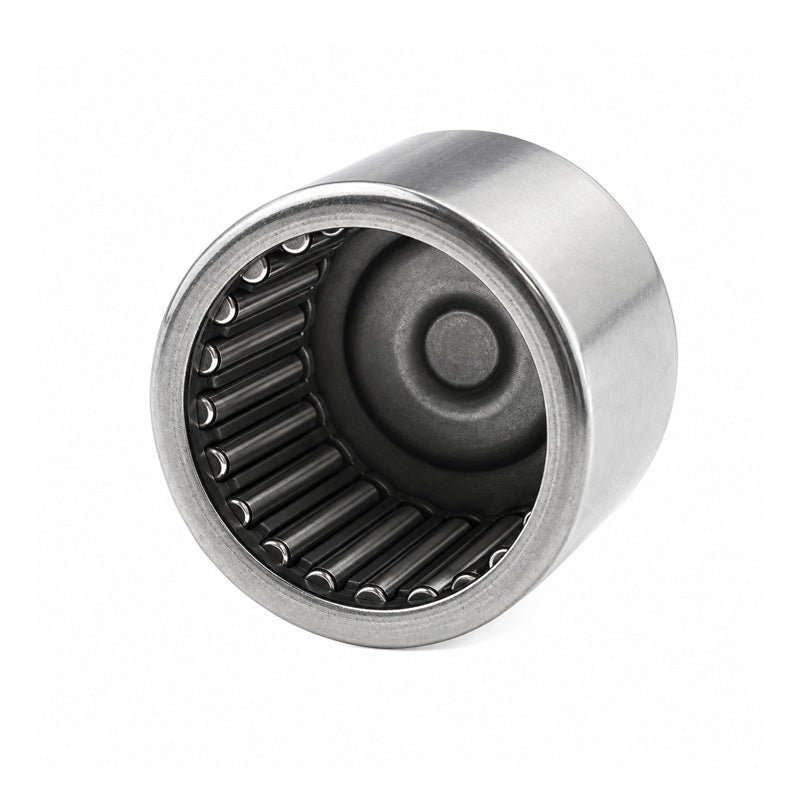

BAM910 Imperial Closed End Needle Roller Bearing 9/16x3/4x5/8 inch
BAM910 Imperial Closed End Needle Roller Bearing 9/16x3/4x5/8 inch
Regular price
Rs. 550.88
ex VAT
Regular price
Sale price
Rs. 550.88
ex VAT
Equivalent to: MJ910F BCE910
In stock
Price Break
10+
Rs. 490.28
19+
Rs. 462.74
29+
Rs. 457.23
39+
Rs. 451.72
49+
Rs. 446.21
74+
Rs. 440.70
99+
Rs. 413.16
199+
Rs. 407.65
249+
Rs. 402.14
499+
Rs. 396.63
999+
Rs. 385.62
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ910F BCE910
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 9/16 inch |
|---|---|
| D | 3/4 inch |
| C | 5/8 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 7050 N |
| Static Load C0 | 9910 N |
| Weight | 10.8 g |
