• BAM1820 Imperial Closed End Needle Roller Bearing 1-1/8x1-3/8x1-1/4 inch
1 1

SKU: BAM.1820

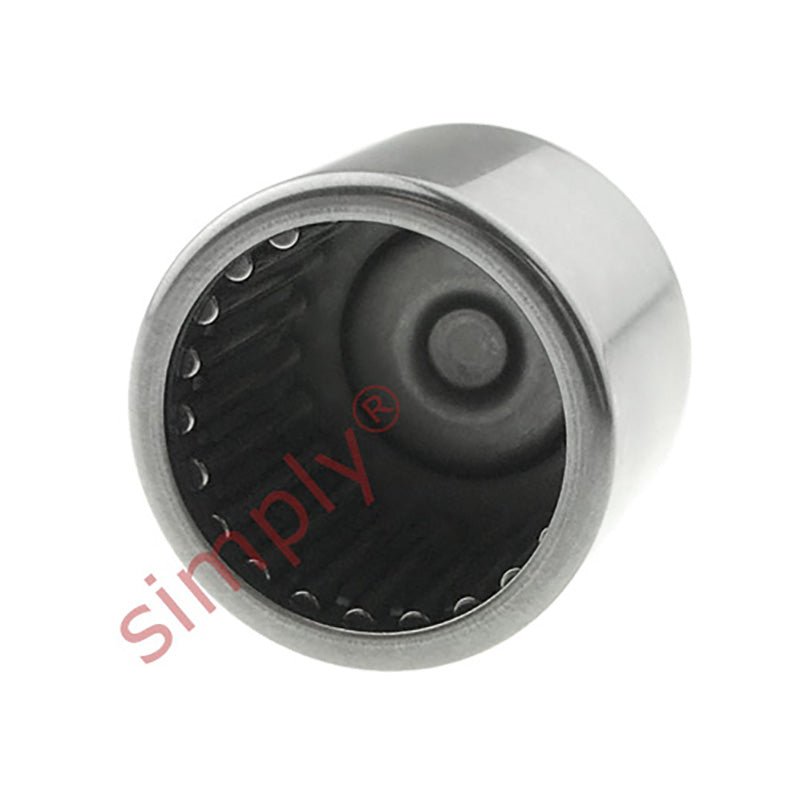

BAM1820 Imperial Closed End Needle Roller Bearing 1-1/8x1-3/8x1-1/4 inch

BAM1820 Imperial Closed End Needle Roller Bearing 1-1/8x1-3/8x1-1/4 inch
Rs. 1,551.59
Rs. 1,551.59
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,380.92
19+ Rs. 1,303.34
29+ Rs. 1,287.82
39+ Rs. 1,272.30
49+ Rs. 1,256.79
74+ Rs. 1,241.27
99+ Rs. 1,163.69
199+ Rs. 1,148.18
249+ Rs. 1,132.66
499+ Rs. 1,117.14
999+ Rs. 1,086.11
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:
IKO - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
34.93mm = 1.375 (1-3/8) inch
Width:
31.75mm = 1.25 (1-1/4) inch
Technical
Fw 1-1/8 inch
D 1-3/8 inch
C 1-1/4 inch
t2 max 2.8mm
Dynamic Load C 25700 N
Static Load C0 53900 N
Weight 52 g
