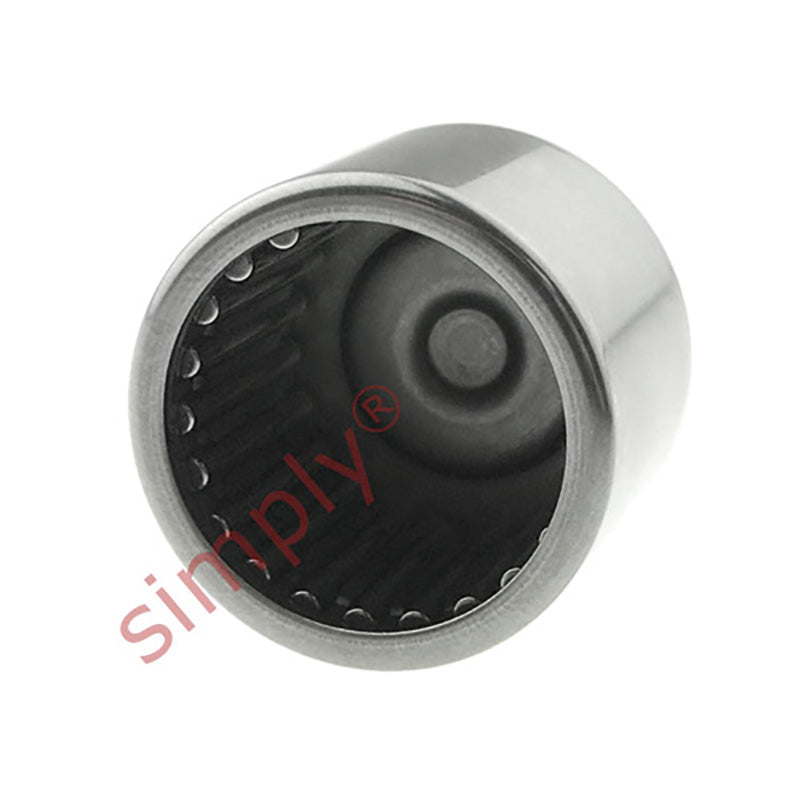

• BAM1412 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x3/4 inch
1 1

SKU: BAM.1412

BAM1412 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x3/4 inch

BAM1412 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x3/4 inch
Rs. 775.79
Rs. 775.79
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 690.45
19+ Rs. 651.66
29+ Rs. 643.91
39+ Rs. 636.15
49+ Rs. 628.39
74+ Rs. 620.63
99+ Rs. 581.84
199+ Rs. 574.08
249+ Rs. 566.33
499+ Rs. 558.57
999+ Rs. 543.05
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:
IKO - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
28.58mm = 1.125 (1-1/8) inch
Width:
19.05mm = 0.75 (3/4) inch
Technical
Fw 7/8 inch
D 1-1/8 inch
C 3/4 inch
t2 max 2.8mm
Dynamic Load C 12800 N
Static Load C0 20400 N
Weight 26 g
