SKU: BA5-EU

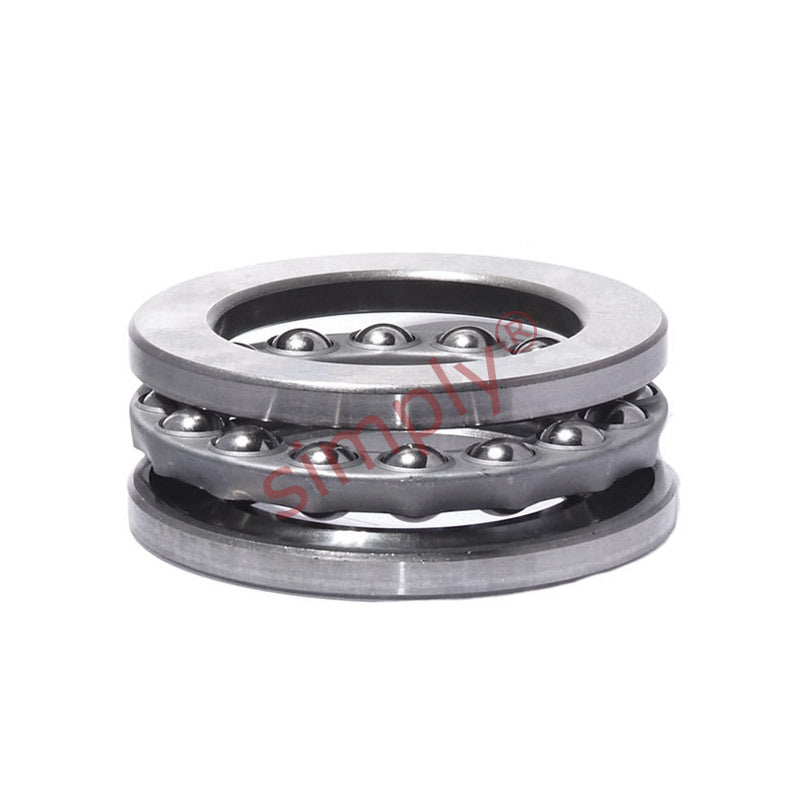

BA5 Budget Single Thrust Ball Bearing 5x12x4mm
BA5 Budget Single Thrust Ball Bearing 5x12x4mm
Regular price
Rs. 956.69
ex VAT
Regular price
Sale price
Rs. 956.69
ex VAT
Equivalent to: F5-12G
In stock
Price Break
10+
Rs. 851.45
19+
Rs. 803.62
29+
Rs. 794.05
39+
Rs. 784.49
49+
Rs. 774.92
74+
Rs. 765.35
99+
Rs. 717.52
199+
Rs. 707.95
249+
Rs. 698.38
499+
Rs. 688.82
999+
Rs. 669.68
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Equivalent: F5-12G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 12mm
- Width:
- 4mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 12mm |
| H | 4mm |
| Dynamic load C | 0.852 kN |
| Static load Co | 0.965 kN |
| Fatigue load limit Pu | 0.036 kN |
| Minimum load factor A | 0.000005 |
| Reference speed | 20000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.0021 kg |
| d1 | 11.8mm |
| D1 | 5.2mm |
| r1r2 min | 0.15mm |
| da min | 8mm |
| Da max | 9mm |
| ra max | 0.15mm |
