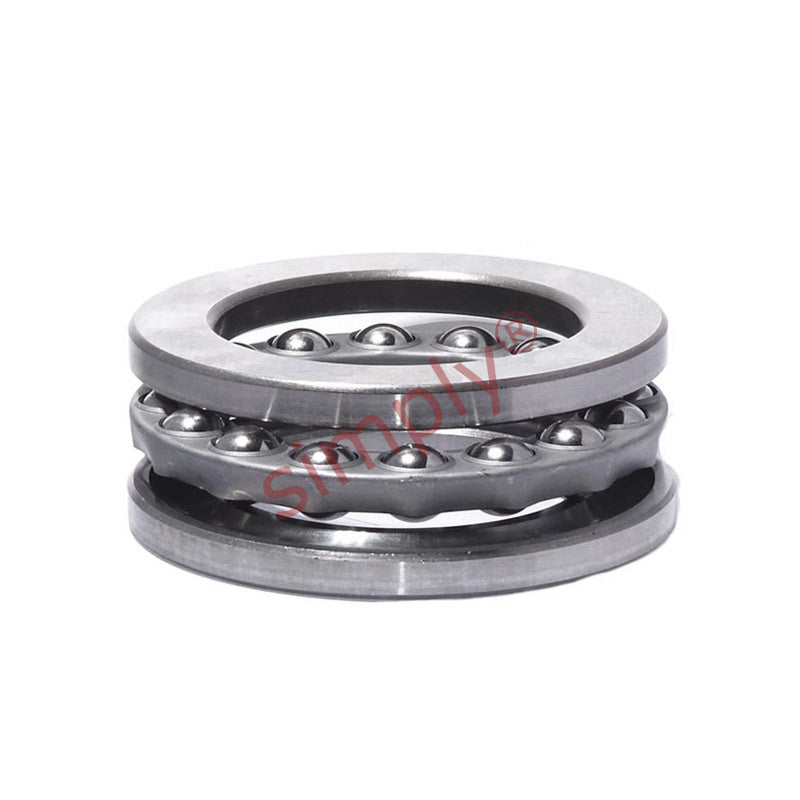

• SKF BA3 Single Thrust Ball Bearing 3x8x3.5mm
1 1

SKU: BA3-SKF

SKF BA3 Single Thrust Ball Bearing 3x8x3.5mm

SKF BA3 Single Thrust Ball Bearing 3x8x3.5mm
Rs. 3,384.82
Rs. 3,384.82
Sale Sold out
Taxes included.

Equivalent to: F3-8G

In stock

Price Break
10+ Rs. 3,012.49
19+ Rs. 2,843.25
29+ Rs. 2,809.40
39+ Rs. 2,775.55
49+ Rs. 2,741.70
74+ Rs. 2,707.86
99+ Rs. 2,538.62
199+ Rs. 2,504.77
249+ Rs. 2,470.92
499+ Rs. 2,437.07
999+ Rs. 2,369.37
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Equivalent: F3-8G
Brand / Quality:
SKF - High Quality
Inside Diameter:
3mm
Outside Diameter:
8mm
Width:
3.5mm
Technical
d 3mm
D 8mm
H 3.5mm
Dynamic load C 0.806 kN
Static load Co 0.72 kN
Fatigue load limit Pu 0.027 kN
Minimum load factor A 0.000003
Reference speed 26000 rpm
Limiting speed 36000 rpm
Weight 0.0009 kg
d1 7.8mm
D1 3.2mm
r1r2 min 0.15mm
da min 5.8mm
Da max 5mm
ra max 0.15mm
