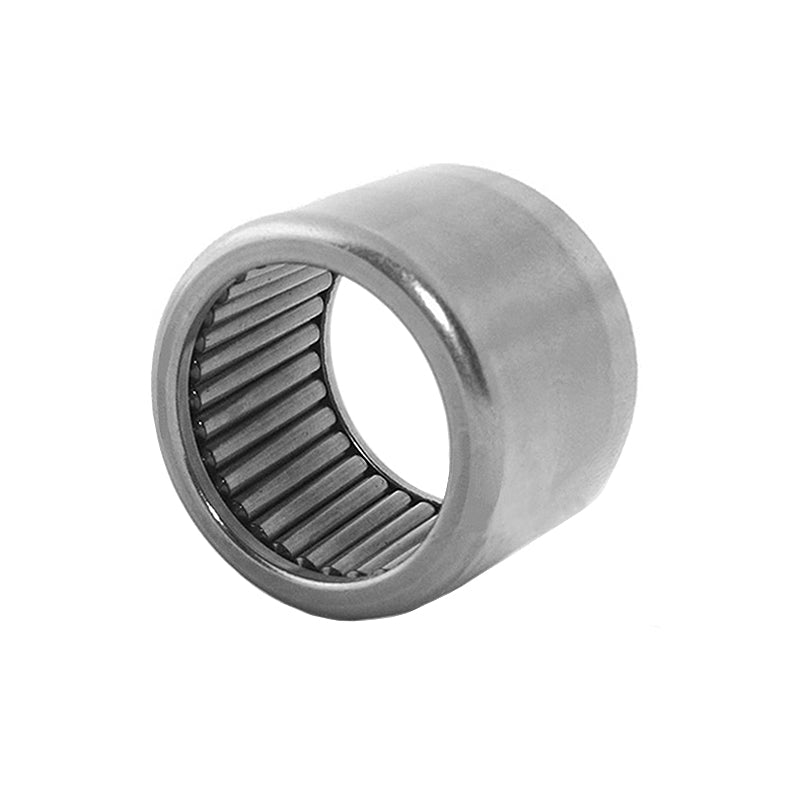

Major Brand B308 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1/2 inch

Name: Major Brand B308 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1/2 inch
Brand: Major Brand
SKU: B-308
Price: 2081.59 INR
Availability: InStock

Rs. 2,081.59

Sale Sold out

Taxes included.

In stock

Price Break

10+ Rs. 1,852.62

19+ Rs. 1,748.54

29+ Rs. 1,727.72

39+ Rs. 1,706.90

49+ Rs. 1,686.09

74+ Rs. 1,665.27

99+ Rs. 1,561.19

199+ Rs. 1,540.38

249+ Rs. 1,519.56

499+ Rs. 1,498.74

999+ Rs. 1,457.11

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

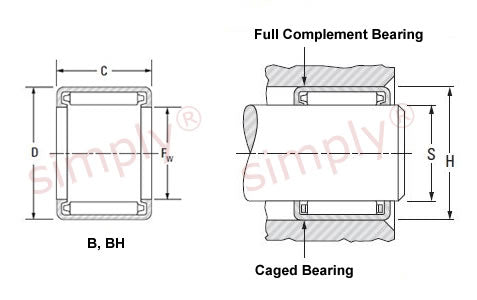

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 47.63mm = 1.875 (1-7/8) inch
Outside Diameter:: 57.15mm = 2.25 (2-1/4) inch
Width:: 12.7mm = 0.5 (1/2) inch

Technical

Inside Diameter	47.63mm = 1.875 inch
Outside Diameter	57.15mm = 2.25 inch
Width	12.7mm = 0.5 inch
Dynamic load C	25.1 kN
Static load Co	46.3 kN
S max	47.625mm = 1.875 inch
S min	47.612mm = 1.8745 inch
H max	57.163mm = 2.2505 inch
H min	57.137mm = 2.2495 inch
