SKU: B-268

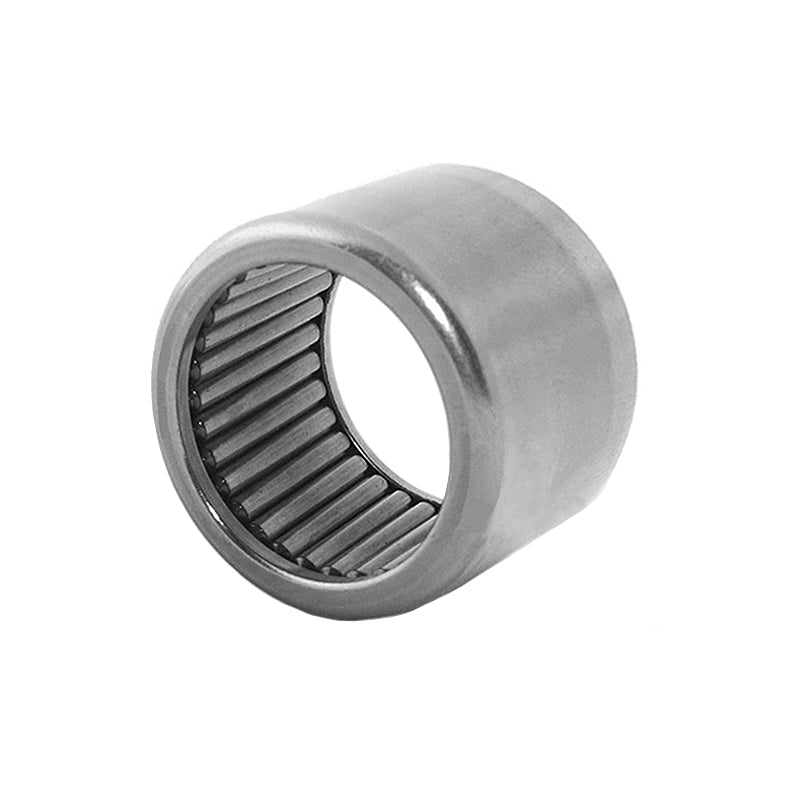

Major Brand B268 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x1/2 inch
Major Brand B268 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x1/2 inch
Regular price
Rs. 2,428.52
Regular price
Sale price
Rs. 2,428.52
Taxes included.
In stock
Price Break
10+
Rs. 2,161.38
19+
Rs. 2,039.96
29+
Rs. 2,015.67
39+
Rs. 1,991.39
49+
Rs. 1,967.10
74+
Rs. 1,942.82
99+
Rs. 1,821.39
199+
Rs. 1,797.10
249+
Rs. 1,772.82
499+
Rs. 1,748.53
999+
Rs. 1,699.96
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Inside Diameter | 41.28mm = 1.625 inch |
|---|---|
| Outside Diameter | 50.8mm = 2 inch |
| Width | 12.7mm = 0.5 inch |
| Dynamic load C | 22.8 kN |
| Static load Co | 39.2 kN |
| S max | 41.275mm = 1.625 inch |
| S min | 41.262mm = 1.6245 inch |
| H max | 50.813mm = 2.0005 inch |
| H min | 50.787mm = 1.9995 inch |
