SKU: B-1314

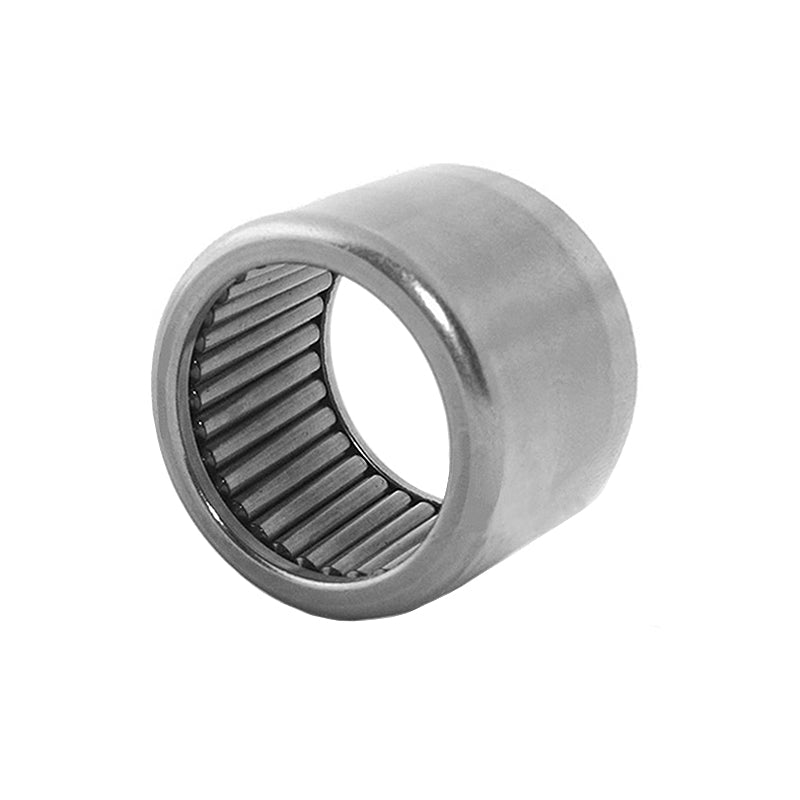

Major Brand B1314 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 13/16x1-1/16x7/8 inch

Name: Major Brand B1314 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 13/16x1-1/16x7/8 inch
Brand: Major Brand
SKU: B-1314
Price: 1793.54 INR
Availability: InStock

Rs. 1,793.54

Sale Sold out

Taxes included.

In stock

Price Break

10+ Rs. 1,596.25

19+ Rs. 1,506.57

29+ Rs. 1,488.64

39+ Rs. 1,470.70

49+ Rs. 1,452.77

74+ Rs. 1,434.83

99+ Rs. 1,345.16

199+ Rs. 1,327.22

249+ Rs. 1,309.28

499+ Rs. 1,291.35

999+ Rs. 1,255.48

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 20.64mm = 0.813 (13/16) inch
Outside Diameter:: 26.99mm = 1.063 (1-1/16) inch
Width:: 22.23mm = 0.875 (7/8) inch

Technical

Inside Diameter	20.64mm = 0.8125 inch
Outside Diameter	26.99mm = 1.0625 inch
Width	22.23mm = 0.875 inch
Dynamic load C	26.7 kN
Static load Co	51.2 kN
S max	20.638mm = 0.8125 inch
S min	20.625mm = 0.812 inch
H max	27mm = 1.063 inch
H min	26.975mm = 1.062 inch
