SKU: B-1112

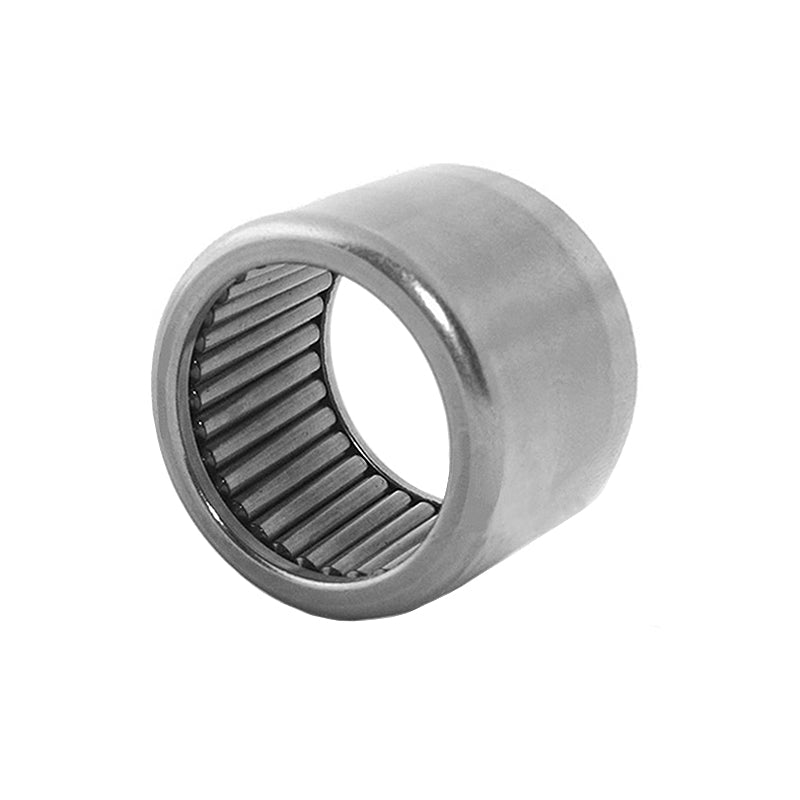

Major Brand B1112 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 11/16x7/8x3/4 inch
Major Brand B1112 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 11/16x7/8x3/4 inch
Regular price
Rs. 1,470.94
Regular price
Sale price
Rs. 1,470.94
Taxes included.
In stock
Price Break
10+
Rs. 1,309.14
19+
Rs. 1,235.59
29+
Rs. 1,220.88
39+
Rs. 1,206.17
49+
Rs. 1,191.46
74+
Rs. 1,176.75
99+
Rs. 1,103.21
199+
Rs. 1,088.50
249+
Rs. 1,073.79
499+
Rs. 1,059.08
999+
Rs. 1,029.66
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Inside Diameter | 17.46mm = 0.6875 inch |
|---|---|
| Outside Diameter | 22.23mm = 0.8745 inch |
| Width | 19.05mm = 0.75 inch |
| Dynamic load C | 17.4 kN |
| Static load Co | 37.1 kN |
| S max | 17.463mm = 0.6875 inch |
| S min | 17.45mm = 0.687 inch |
| H max | 22.238mm = 0.8755 inch |
| H min | 22.212mm = 0.8745 inch |
