SKU: AXW50-MB

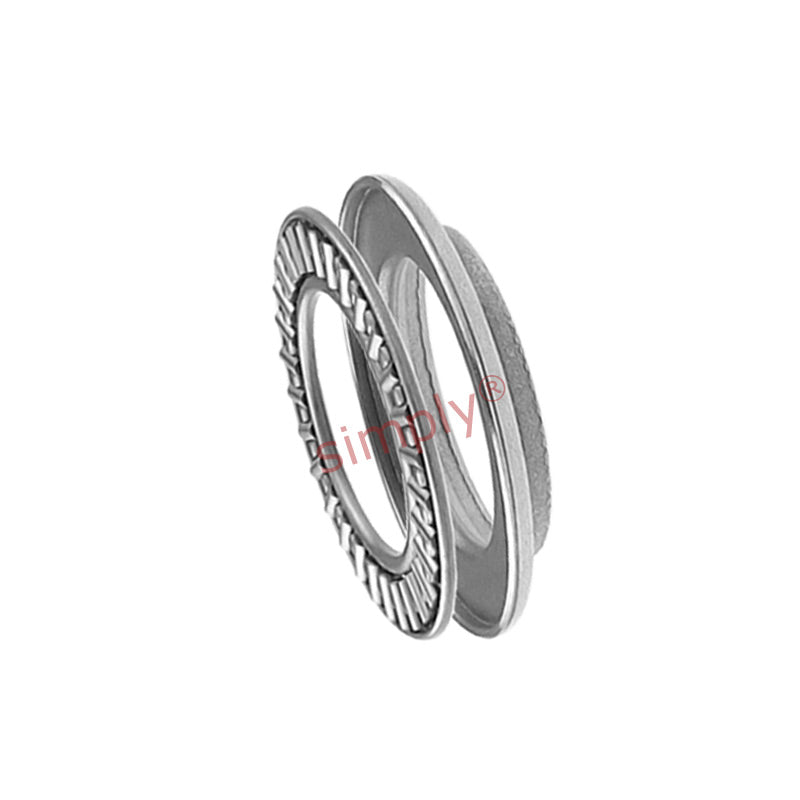

INA / SKF AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
INA / SKF AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
Regular price
Rs. 2,738.32
Regular price
Sale price
Rs. 2,738.32
Taxes included.
In stock
Price Break
10+
Rs. 2,437.10
19+
Rs. 2,300.19
29+
Rs. 2,272.81
39+
Rs. 2,245.42
49+
Rs. 2,218.04
74+
Rs. 2,190.66
99+
Rs. 2,053.74
199+
Rs. 2,026.36
249+
Rs. 1,998.97
499+
Rs. 1,971.59
999+
Rs. 1,916.82
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 73mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 50mm |
|---|---|
| Outside diameter | 73mm |
| B | 4.2mm |
| B1 | 4.5mm |
| D1 | 58mm |
| Ea | 55mm |
| Eb | 68mm |
| Weight | 49 g |
| Dynamic load | 32000 N |
| Static load | 143000 N |
| Fatigue load limit | 14800 N |
| Limiting speed | 4700 rpm |
| Reference speed | 2160 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS5070">Click Here AS5070 |
