SKU: AXW40-EU

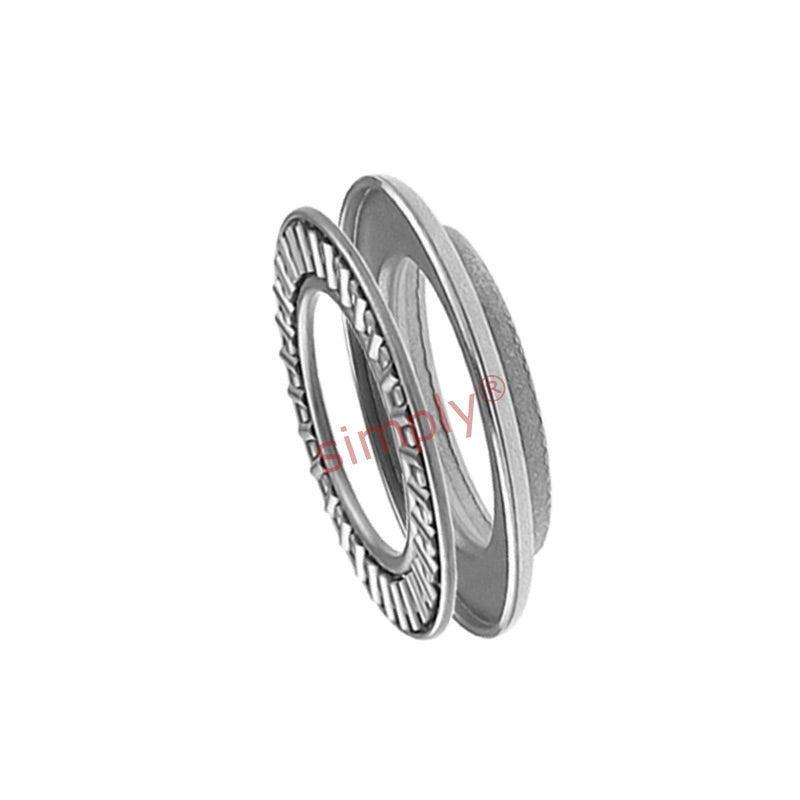

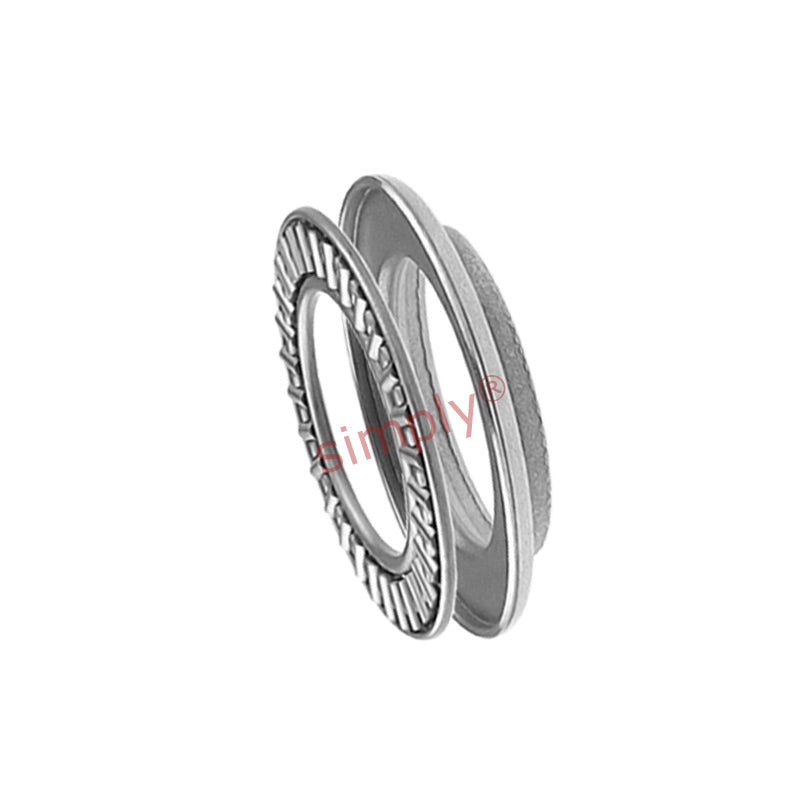

Quality Budget AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
Quality Budget AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
Regular price
Rs. 1,152.17
Regular price
Sale price
Rs. 1,152.17
Taxes included.
In stock
Price Break
10+
Rs. 1,025.43
19+
Rs. 967.82
29+
Rs. 956.30
39+
Rs. 944.78
49+
Rs. 933.26
74+
Rs. 921.74
99+
Rs. 864.13
199+
Rs. 852.61
249+
Rs. 841.08
499+
Rs. 829.56
999+
Rs. 806.52
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 63mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 40mm |
|---|---|
| Outside diameter | 63mm |
| B | 4.2mm |
| B1 | 4mm |
| D1 | 47mm |
| Ea | 45mm |
| Eb | 58mm |
| Weight | 39 g |
| Dynamic load | 28000 N |
| Static load | 114000 N |
| Fatigue load limit | 11800 N |
| Limiting speed | 5600 rpm |
| Reference speed | 2700 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS4060">Click Here AS4060 |
