SKU: AXW30-MB

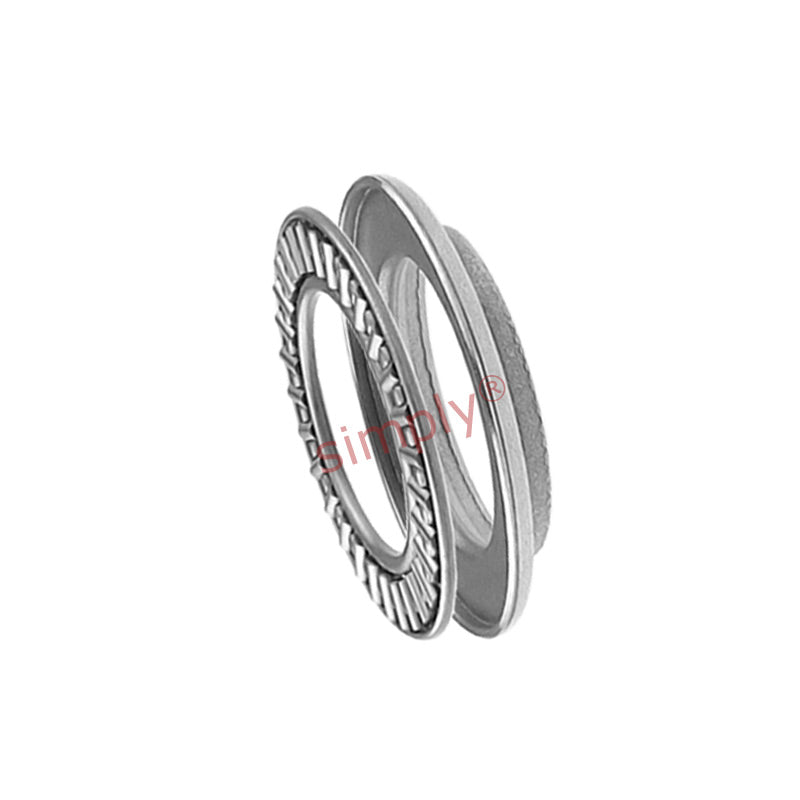

INA / SKF AXW30 Thrust Race with Centering Spigot 30x50x3.2mm
INA / SKF AXW30 Thrust Race with Centering Spigot 30x50x3.2mm
Regular price
Rs. 1,003.67
Regular price
Sale price
Rs. 1,003.67
Taxes included.
In stock
Price Break
10+
Rs. 893.27
19+
Rs. 843.08
29+
Rs. 833.05
39+
Rs. 823.01
49+
Rs. 812.97
74+
Rs. 802.94
99+
Rs. 752.75
199+
Rs. 742.72
249+
Rs. 732.68
499+
Rs. 722.64
999+
Rs. 702.57
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 50mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 30mm |
|---|---|
| Outside diameter | 50mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 37mm |
| Ea | 34mm |
| Eb | 46mm |
| Weight | 22 g |
| Dynamic load | 16300 N |
| Static load | 70000 N |
| Fatigue load limit | 7100 N |
| Limiting speed | 7300 rpm |
| Reference speed | 3600 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS3047">Click Here AS3047 |
