SKU: AXW25-MB

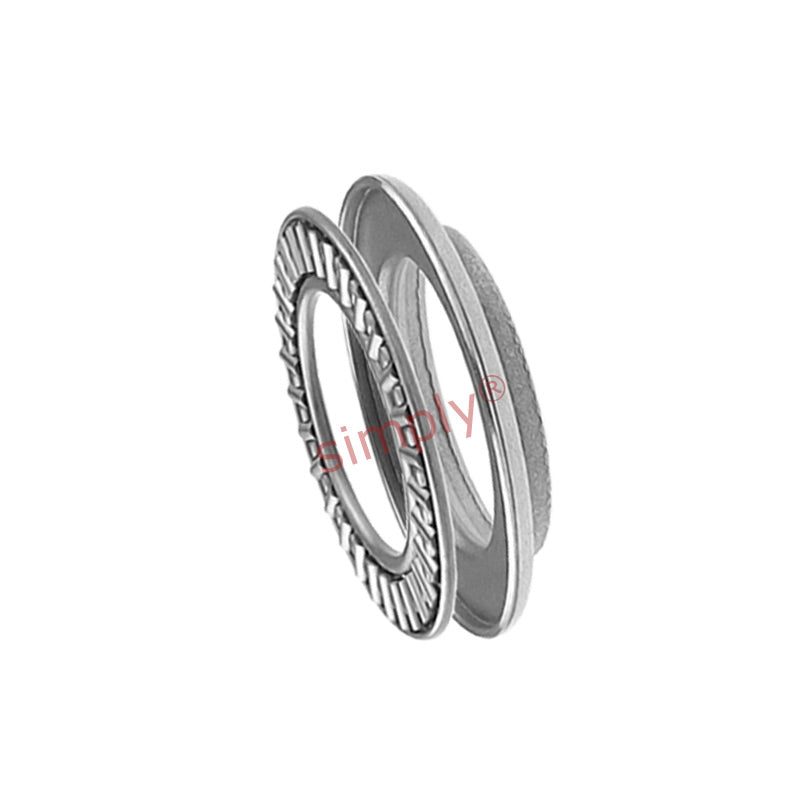

INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
Regular price
Rs. 869.60
ex VAT
Regular price
Sale price
Rs. 869.60
ex VAT
In stock
Price Break
10+
Rs. 773.94
19+
Rs. 730.46
29+
Rs. 721.77
39+
Rs. 713.07
49+
Rs. 704.38
74+
Rs. 695.68
99+
Rs. 652.20
199+
Rs. 643.50
249+
Rs. 634.81
499+
Rs. 626.11
999+
Rs. 608.72
Couldn't load pickup availability
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 25mm |
|---|---|
| Outside diameter | 45mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 32mm |
| Ea | 29mm |
| Eb | 41mm |
| Weight | 20 g |
| Dynamic load | 14700 N |
| Static load | 58000 N |
| Fatigue load limit | 5900 N |
| Limiting speed | 8400 rpm |
| Reference speed | 4250 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS2542">Click Here AS2542 |
