SKU: AXK85110-EU

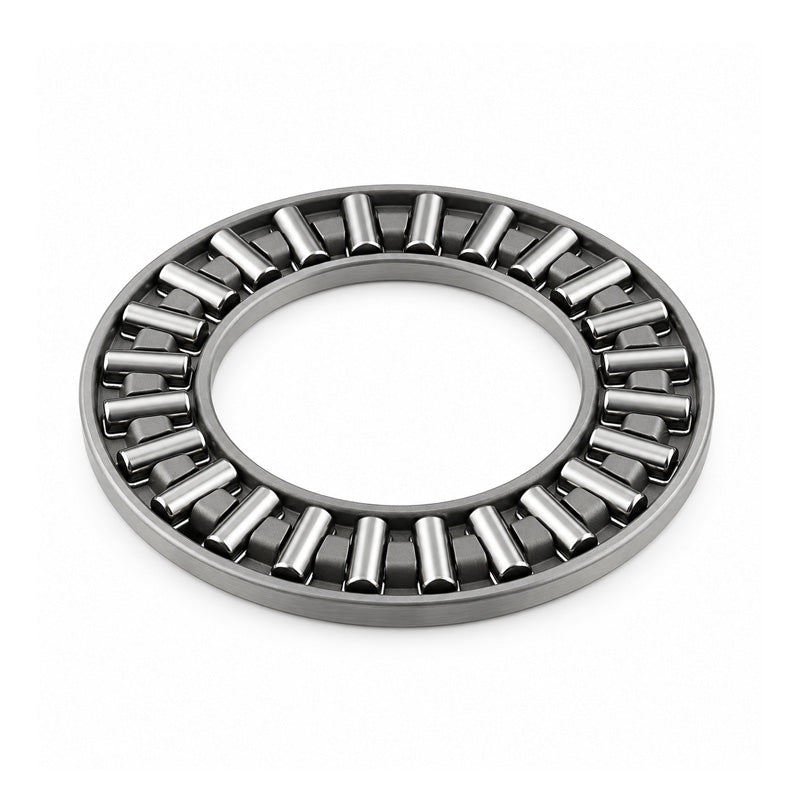

AXK85110 Budget Needle Roller Cage Only 85x110x4mm
AXK85110 Budget Needle Roller Cage Only 85x110x4mm
Regular price
Rs. 1,929.24
Regular price
Sale price
Rs. 1,929.24
Taxes included.
In stock
Price Break
10+
Rs. 1,717.02
19+
Rs. 1,620.56
29+
Rs. 1,601.27
39+
Rs. 1,581.98
49+
Rs. 1,562.68
74+
Rs. 1,543.39
99+
Rs. 1,446.93
199+
Rs. 1,427.64
249+
Rs. 1,408.35
499+
Rs. 1,389.05
999+
Rs. 1,350.47
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 4mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 110mm |
| Dw | 4mm |
| Ea | 89mm |
| Eb | 108mm |
| Dynamic load C | 52000 N |
| Static load Co | 290000 N |
| Fatigue load limit Pu | 34500 N |
| Speed in grease | 1000 rpm |
| Speed in oil | 1500 rpm |
| Weight (Assembly) | 67 g |
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 5.75mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 160 g |
| Weight AS | 29 g |
| Raceway washer | LS85110 |
| Thrust washer | AS85110 |
| Shaft washer | WS81117 |
| Housing washer | GS81117 |
