SKU: AXK6590-NTN-AS6590-NTN

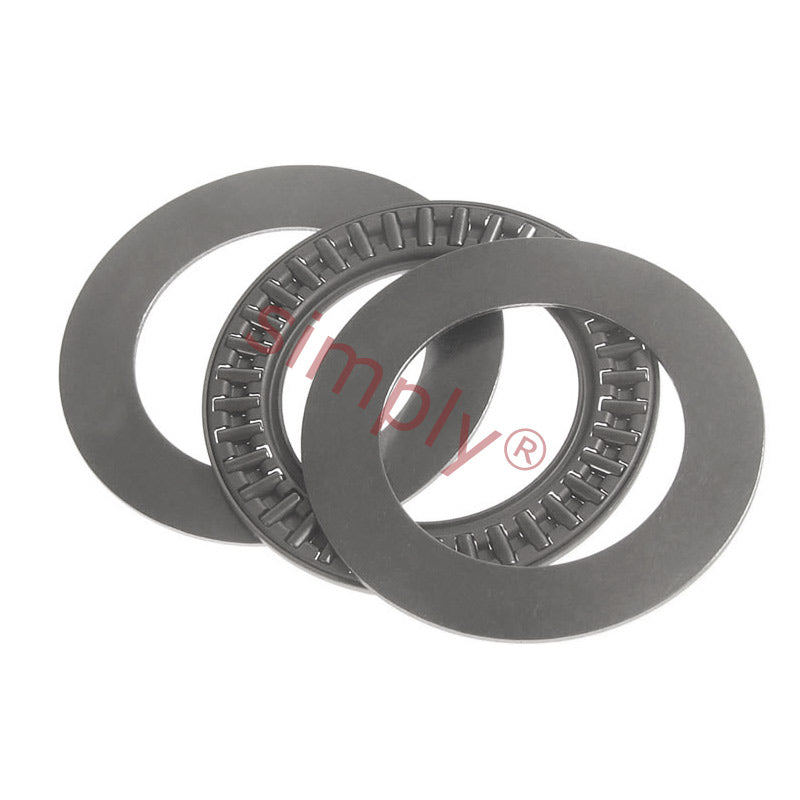

NTN AXK6590 Needle Roller Cage with 2 AS6590 Washers 65x90x5mm
NTN AXK6590 Needle Roller Cage with 2 AS6590 Washers 65x90x5mm
Out of stock
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 5mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| Dw | 5mm total (2 washers at 1mm each) |
| Ea | 70mm |
| Eb | 88mm |
| Dynamic load | 39000 N |
| Static load | 255000 N |
| Fatigue load limit Pu | 31000 N |
| Speed in grease | 1200 rpm |
| Speed in oil | 1700 rpm |
| Weight (assembly) | 35 g |
| d1 | 90mm |
| D | 90mm |
| D1 | 67mm |
| B | 5.25mm |
