SKU: AXK6085-EU-AS6085-EU

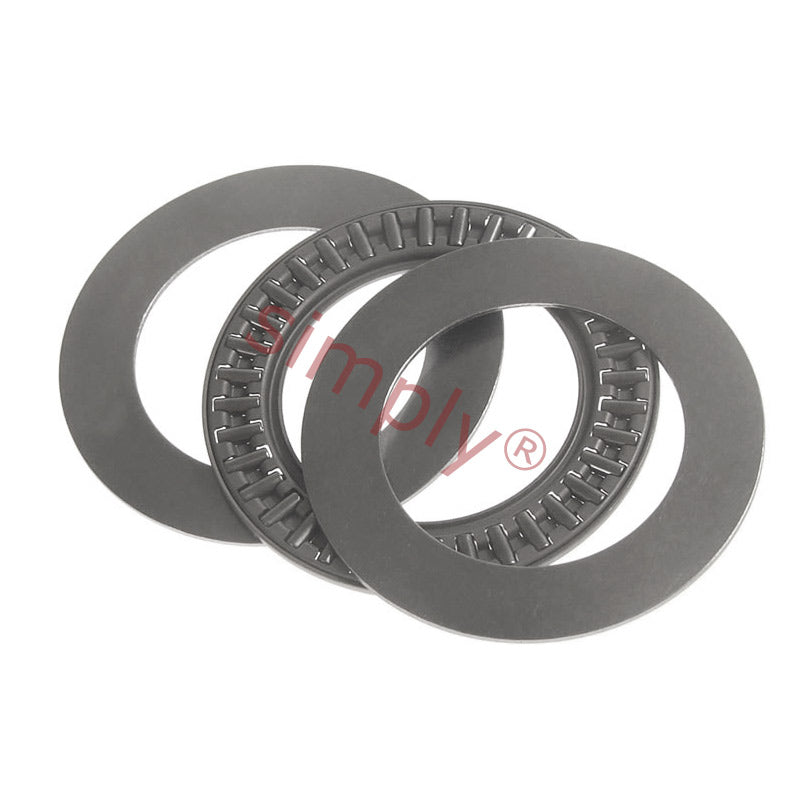

AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm
AXK6085/AS6085 Budget Needle Roller Cage with 2 AS Washers 60x85x5mm
Regular price
Rs. 1,383.88
Regular price
Sale price
Rs. 1,383.88
Taxes included.
In stock
Price Break
10+
Rs. 1,231.65
19+
Rs. 1,162.46
29+
Rs. 1,148.62
39+
Rs. 1,134.78
49+
Rs. 1,120.94
74+
Rs. 1,107.10
99+
Rs. 1,037.91
199+
Rs. 1,024.07
249+
Rs. 1,010.23
499+
Rs. 996.39
999+
Rs. 968.72
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 5mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| Dw | 5mm |
| Ea | 65mm |
| Eb | 83mm |
| Dynamic load C | 37500 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 28500 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1800 rpm |
| Weight (Assembly) | 33 g |
| d1 | 85mm |
| D | 85mm |
| D1 | 62mm |
| B | 4.75mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 97 g |
| Weight AS | 22 g |
| Raceway washer | LS6085 |
| Thrust washer | AS6085 |
| Shaft washer | WS81112 |
| Housing washer | GS81112 |
