SKU: AXK3047-NTN-AS3047-NTN

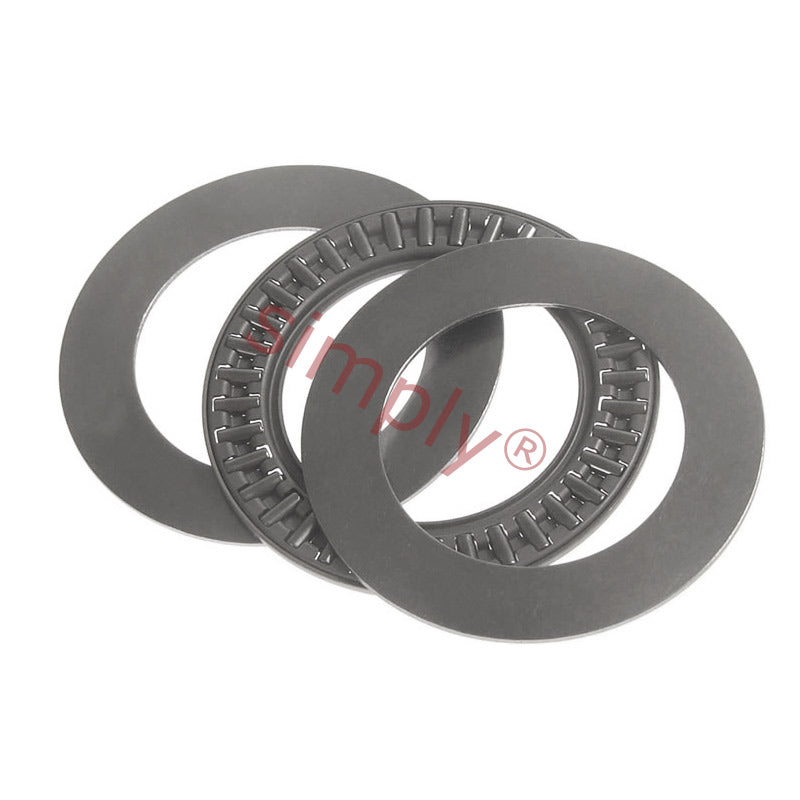

NTN AXK3047 Needle Roller Cage with 2 AS3047 Washers 30x47x4mm
NTN AXK3047 Needle Roller Cage with 2 AS3047 Washers 30x47x4mm
Out of stock
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 4mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Ea | 34mm |
| Eb | 46mm |
| Dynamic load | 15000 N |
| Static load | 72000 N |
| Fatigue load limit Pu | 8000 N |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| Weight (assembly) | 8 g |
| d1 | 47mm |
| D | 47mm |
| D1 | 32mm |
| B | 3mm |
