SKU: AXK1226-MB-AS1226-MB
Major Brand AXK1226 Needle Roller Cage with 2 AS1226 Washers 12x26x4mm
Major Brand AXK1226 Needle Roller Cage with 2 AS1226 Washers 12x26x4mm
Regular price
Rs. 559.44
Regular price
Sale price
Rs. 559.44
Taxes included.
In stock
Price Break
10+
Rs. 497.90
19+
Rs. 469.93
29+
Rs. 464.34
39+
Rs. 458.74
49+
Rs. 453.15
74+
Rs. 447.55
99+
Rs. 419.58
199+
Rs. 413.99
249+
Rs. 408.39
499+
Rs. 402.80
999+
Rs. 391.61
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 4mm

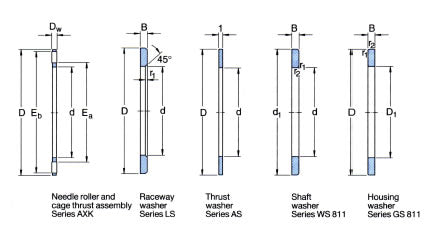

Technical
Technical
| d | 12mm |
|---|---|
| D | 26mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Ea | 14mm |
| Eb | 20mm |
| Dynamic load | 9150 N |
| Static load | 30000 N |
| Fatigue load limit Pu | 3250 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4500 rpm |
| Weight (assembly) | 3 g |
| D | 26mm |
| B | 2.75mm |
