SKU: AXK1108-NTN

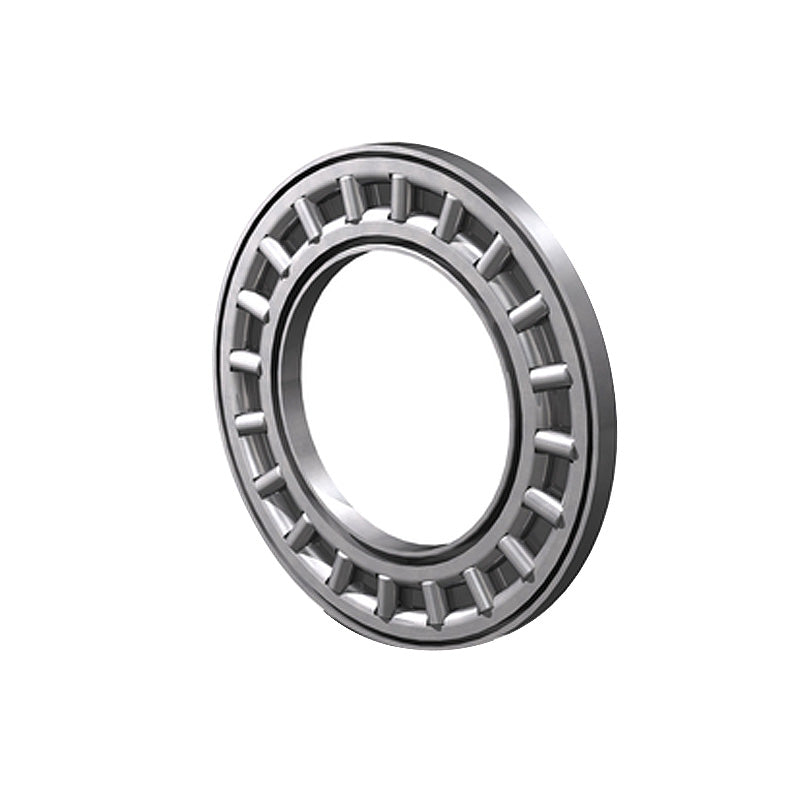

NTN AXK1108 Needle Roller Cage Only 40x60x3mm - Allow 2-3 Days
NTN AXK1108 Needle Roller Cage Only 40x60x3mm - Allow 2-3 Days
Regular price
Rs. 654.18
Regular price
Sale price
Rs. 654.18
Taxes included.
Low stock
Price Break
10+
Rs. 582.22
19+
Rs. 549.51
29+
Rs. 542.97
39+
Rs. 536.43
49+
Rs. 529.89
74+
Rs. 523.34
99+
Rs. 490.64
199+
Rs. 484.09
249+
Rs. 477.55
499+
Rs. 471.01
999+
Rs. 457.93
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 40mm |
|---|---|
| Dc - Outside diameter | 60mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1108 |
| WS inner ring reference | WS81108 |
| GS outer ring reference | GS81108 |
| Ea - Rollers reference outer diameter | 56.2mm |
| Eb - Rollers reference inner diameter | 44.2mm |
| Ca - Dynamic axial load rating | 27.4 kN |
| C0a - Static axial load rating | 110 kN |
| Cua - Limit axial load rating | 13.5 kN |
| Grease lubrication limit speed | 1200 tr/min |
| Oil lubrication limit speed | 4700 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
