SKU: AXK1107-NTN

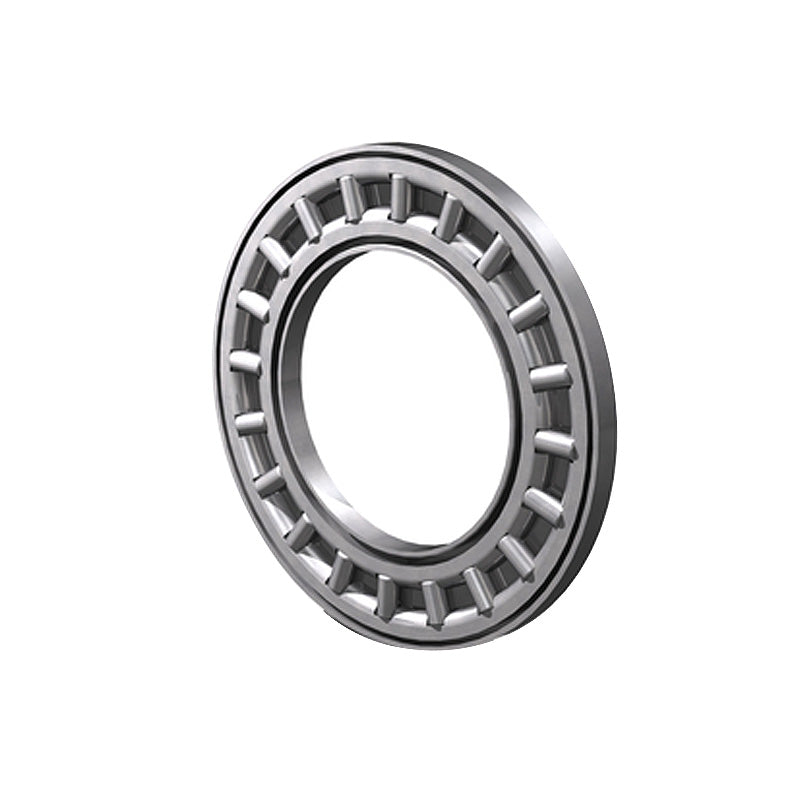

NTN AXK1107 Needle Roller Cage Only 35x52x2mm - Allow 2-3 Days
NTN AXK1107 Needle Roller Cage Only 35x52x2mm - Allow 2-3 Days
Regular price
Rs. 622.17
Regular price
Sale price
Rs. 622.17
Taxes included.
Low stock
Price Break
10+
Rs. 553.73
19+
Rs. 522.62
29+
Rs. 516.40
39+
Rs. 510.18
49+
Rs. 503.96
74+
Rs. 497.74
99+
Rs. 466.63
199+
Rs. 460.41
249+
Rs. 454.18
499+
Rs. 447.96
999+
Rs. 435.52
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 2mm

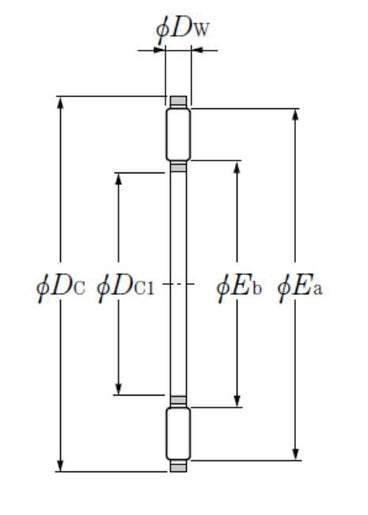

Technical
Technical
| Dc1 - Inside diameter | 35mm |
|---|---|
| Dc - Outside diameter | 52mm |
| Dw - Roller Width | 2mm |
| AS washer reference | AS1107 |
| WS inner ring reference | WS81107 |
| GS outer ring reference | GS81107 |
| Ea - Rollers reference outer diameter | 49.4mm |
| Eb - Rollers reference inner diameter | 39.5mm |
| Ca - Dynamic axial load rating | 17.8 kN |
| C0a - Static axial load rating | 81.5 kN |
| Cua - Limit axial load rating | 9.9 kN |
| Grease lubrication limit speed | 1400 tr/min |
| Oil lubrication limit speed | 5500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
