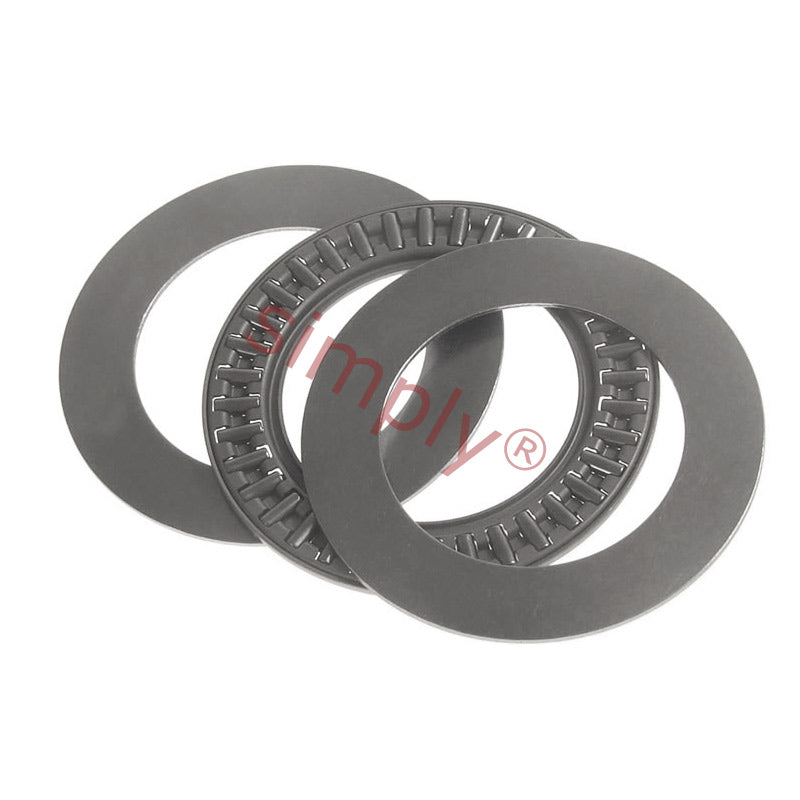

AXK0619/AS0619 Budget Needle Roller Cage with 2 AS Washers 6x19x4mm
AXK0619/AS0619 Budget Needle Roller Cage with 2 AS Washers 6x19x4mm
Regular price
Rs. 569.68
Regular price
Sale price
Rs. 569.68
Taxes included.
In stock
Price Break
10+
Rs. 507.02
19+
Rs. 478.53
29+
Rs. 472.83
39+
Rs. 467.14
49+
Rs. 461.44
74+
Rs. 455.74
99+
Rs. 427.26
199+
Rs. 421.56
249+
Rs. 415.87
499+
Rs. 410.17
999+
Rs. 398.78
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 4mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 19mm |
| Dw | 4mm |
| Ea | 7mm |
| Eb | 18mm |
| Dynamic load C | 6300 N |
| Static load Co | 16000 N |
| Fatigue load limit Pu | 1750 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6000 rpm |
| Weight (Assembly) | 1 g |
| D | 19mm |
| B | 2.75mm |
| r1r2 min | 0.3mm |
| Weight LS GS WS | 4 g |
| Weight AS | 2 g |
| Raceway washer | LS0619 |
| Thrust washer | AS0619 |
