SKU: AXK0414-EU-AS0414-EU

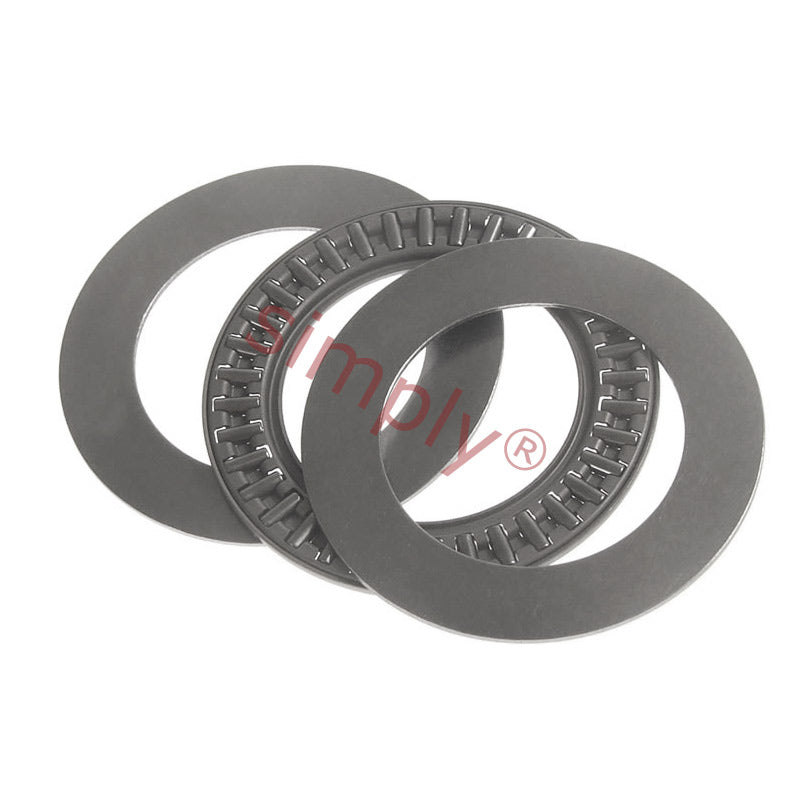

AXK0414/AS0414 Budget Needle Roller Cage with 2 AS Washers 4x14x4mm
AXK0414/AS0414 Budget Needle Roller Cage with 2 AS Washers 4x14x4mm
Regular price
Rs. 505.81
ex VAT
Regular price
Sale price
Rs. 505.81
ex VAT
In stock
Price Break
10+
Rs. 450.17
19+
Rs. 424.88
29+
Rs. 419.82
39+
Rs. 414.76
49+
Rs. 409.71
74+
Rs. 404.65
99+
Rs. 379.36
199+
Rs. 374.30
249+
Rs. 369.24
499+
Rs. 364.18
999+
Rs. 354.07
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 14mm
- Width:
- 4mm
Technical
Technical
| d | 4mm |
|---|---|
| D | 14mm |
| Dw | 4mm |
| Ea | 5mm |
| Eb | 13mm |
| Dynamic load C | 4150 N |
| Static load Co | 8300 N |
| Fatigue load limit Pu | 865 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 7500 rpm |
| Weight (Assembly) | 0.7 g |
| D | 14mm |
| r1r2 min | -mm |
| Weight AS | 1 g |
| Thrust washer | AS0414 |
