SKU: AX9100135-MB

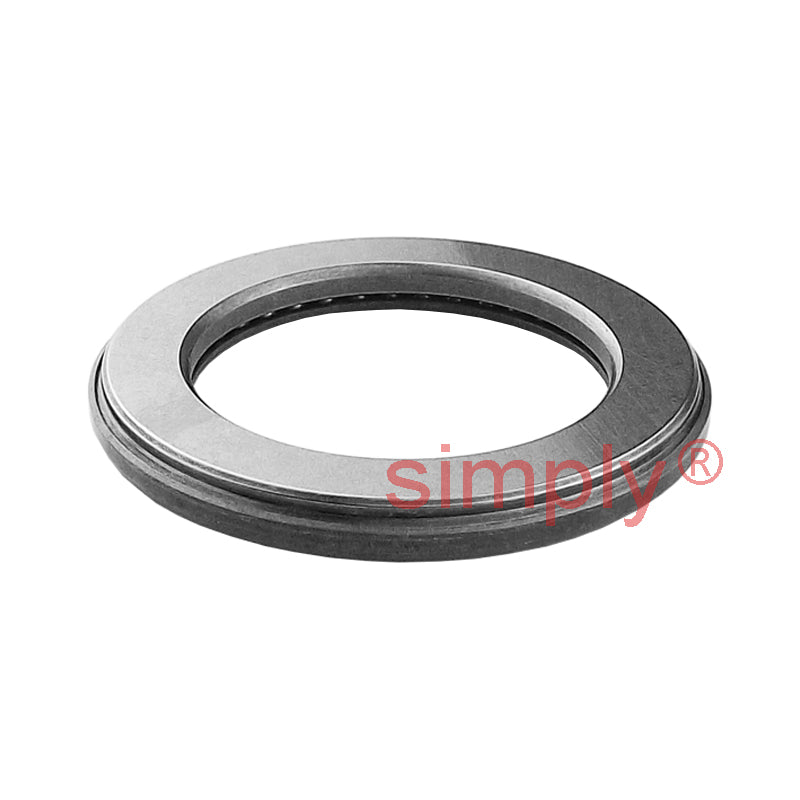

Major Brand AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 Days
Major Brand AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 Days
Regular price
Rs. 66,496.79
Regular price
Sale price
Rs. 66,496.79
Taxes included.
In stock
Price Break
10+
Rs. 59,182.14
19+
Rs. 55,857.30
29+
Rs. 55,192.34
39+
Rs. 54,527.37
49+
Rs. 53,862.40
74+
Rs. 53,197.43
99+
Rs. 49,872.59
199+
Rs. 49,207.62
249+
Rs. 48,542.66
499+
Rs. 47,877.69
999+
Rs. 46,547.75
Description
Description

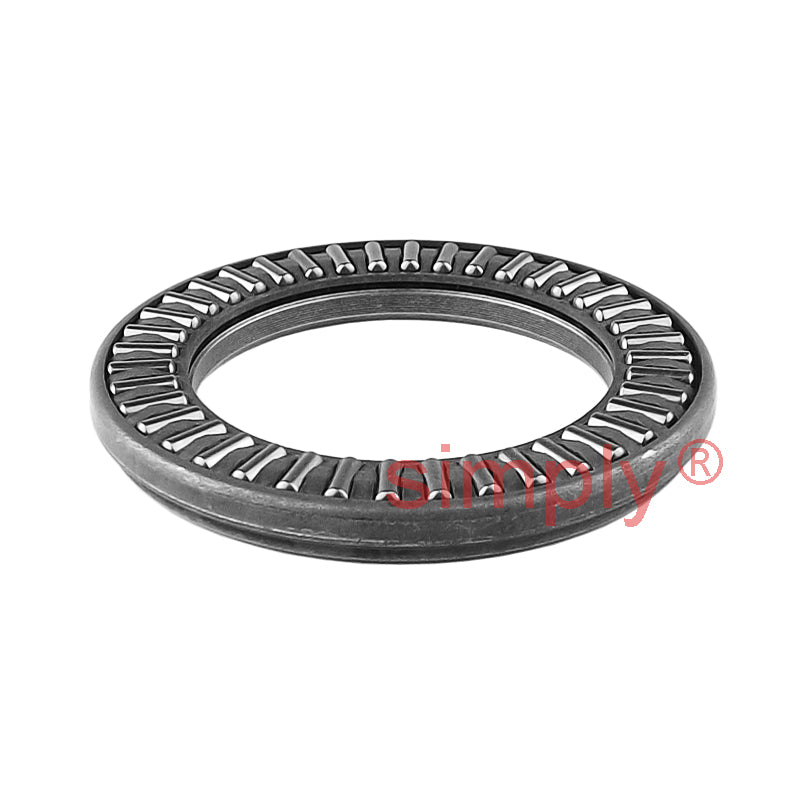

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 9mm
Technical
Technical
| Dc1 | 100mm |
|---|---|
| D | 135mm |
| B1 | 9mm |
| Eb | 104.2mm |
| Ea | 127.3mm |
| Dynamic load | 73 kN |
| Static load | 490 kN |
| Speed rating in oil | 2100 rpm |
| Mass | 0.364 kg |
