SKU: AX890120-NADELLA

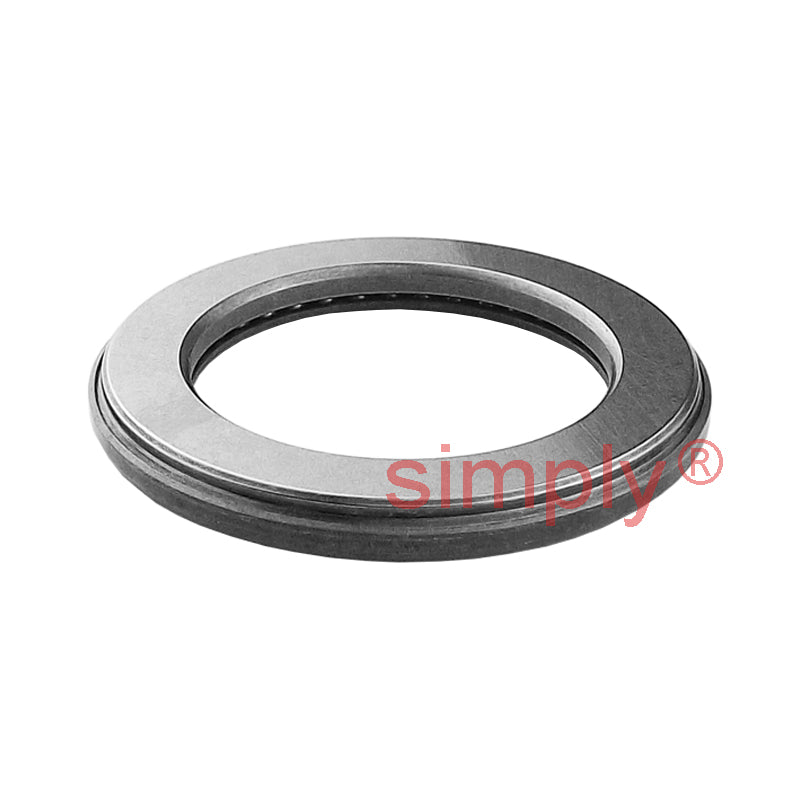

Nadella AX890120 Thick Needle Roller Thrust Bearing 90x120x8mm Allow 2-3 Day
Nadella AX890120 Thick Needle Roller Thrust Bearing 90x120x8mm Allow 2-3 Day
Out of stock
Share this product
Description
Description

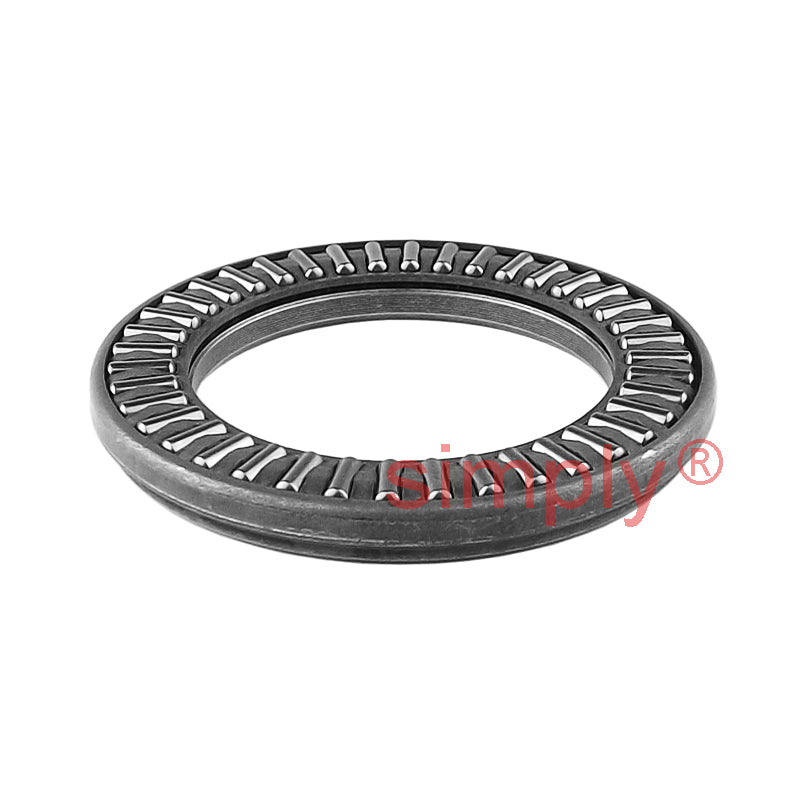

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 8mm
Technical
Technical
| Dc1 | 90mm |
|---|---|
| D | 120mm |
| B1 | 8mm |
| Eb | 94.2mm |
| Ea | 112.9mm |
| Dynamic load | 59 kN |
| Static load | 360 kN |
| Speed rating in oil | 2400 rpm |
| Mass | 0.238 kg |
