SKU: AX685110-NADELLA

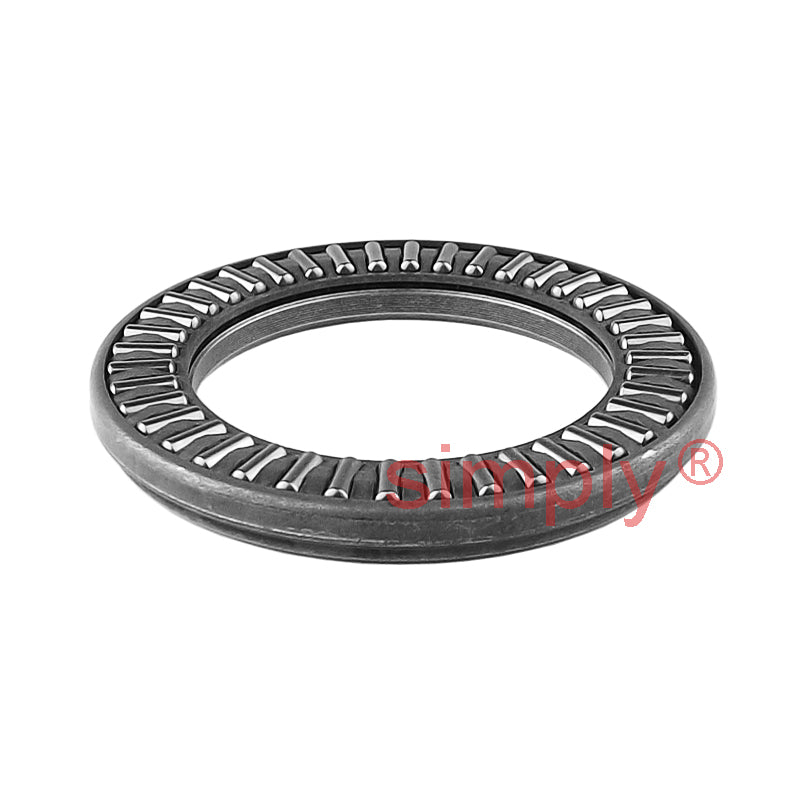

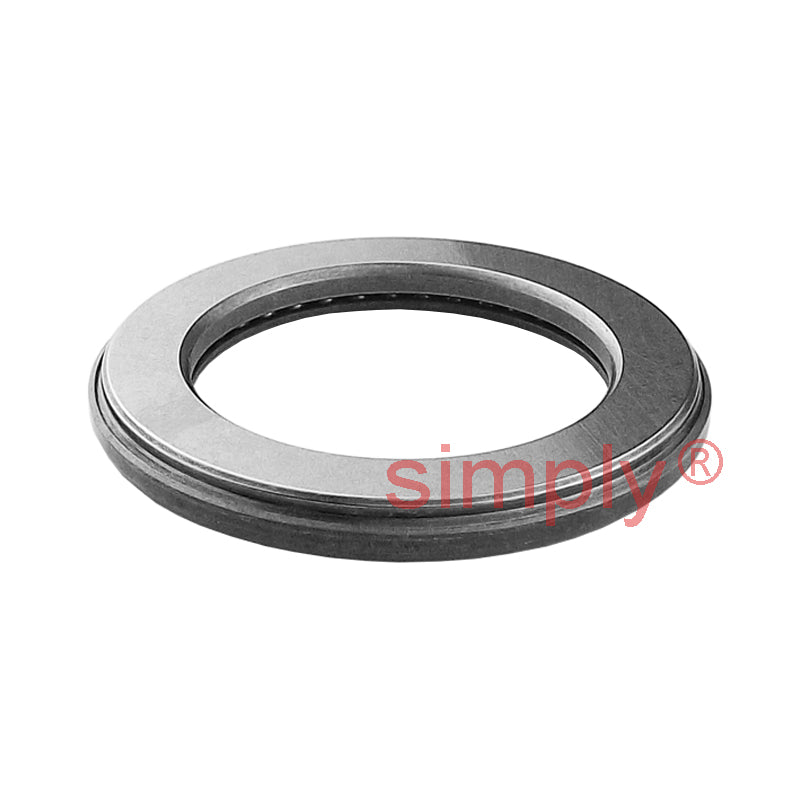

Nadella AX685110 Thick Needle Roller Thrust Bearing 85x110x6mm - Allow 2-3 Days
Nadella AX685110 Thick Needle Roller Thrust Bearing 85x110x6mm - Allow 2-3 Days
Regular price
Rs. 63,300.18
ex VAT
Regular price
Sale price
Rs. 63,300.18
ex VAT
In stock
Price Break
5+
Rs. 62,667.18
10+
Rs. 60,135.17
20+
Rs. 58,869.17
50+
Rs. 56,970.16
100+
Rs. 55,704.16
500+
Rs. 52,539.15
1000+
Rs. 44,310.13
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 85mm |
|---|---|
| D | 110mm |
| B1 | 6mm |
| Eb | 88.5mm |
| Ea | 104.2mm |
| Dynamic load | 38 kN |
| Static load | 270 kN |
| Speed rating in oil | 2600 rpm |
| Mass | 0.142 kg |
