SKU: AX54565-NADELLA

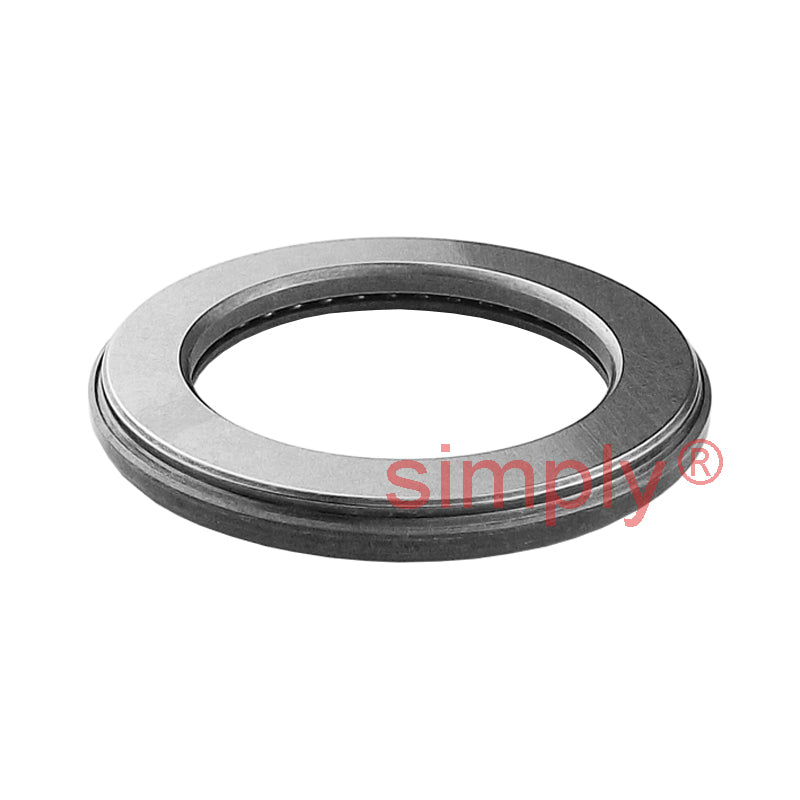

Nadella AX54565 Thick Needle Roller Thrust Bearing 45x65x5mm Allow 2-3 Days
Nadella AX54565 Thick Needle Roller Thrust Bearing 45x65x5mm Allow 2-3 Days
Regular price
Rs. 7,148.80
ex VAT
Regular price
Sale price
Rs. 7,148.80
ex VAT
In stock
Price Break
5+
Rs. 7,077.31
10+
Rs. 6,791.36
20+
Rs. 6,648.38
50+
Rs. 6,433.92
100+
Rs. 6,290.94
500+
Rs. 5,933.50
1000+
Rs. 5,004.16
Couldn't load pickup availability
Description
Description

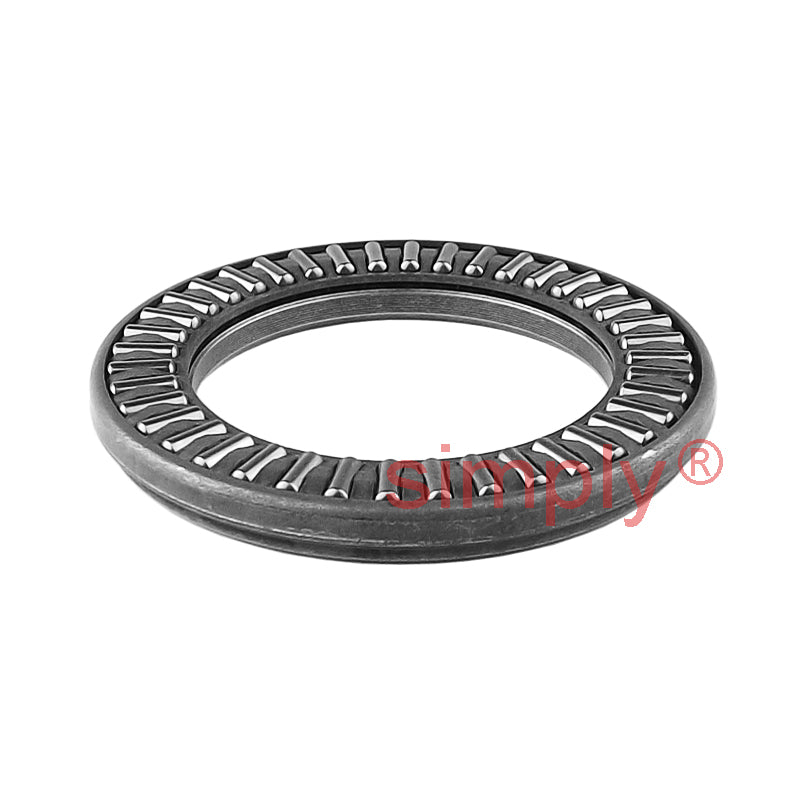

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 45mm |
|---|---|
| D | 65mm |
| B1 | 5mm |
| Eb | 48mm |
| Ea | 59.9mm |
| Dynamic load | 21.8 kN |
| Static load | 109 kN |
| Speed rating in oil | 4500 rpm |
| Mass | 0.05 kg |
