SKU: AX54565-MB

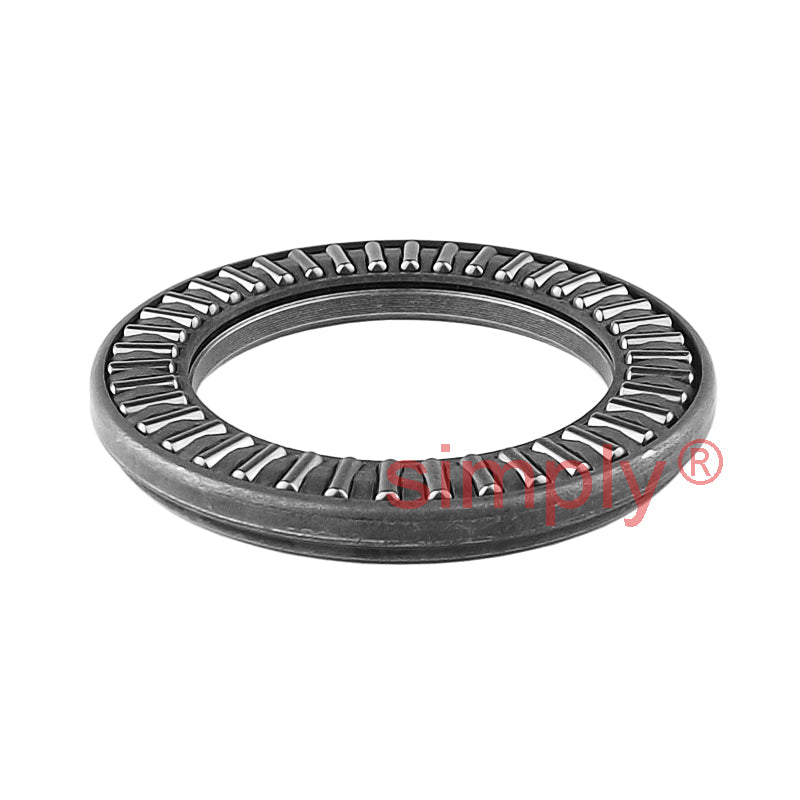

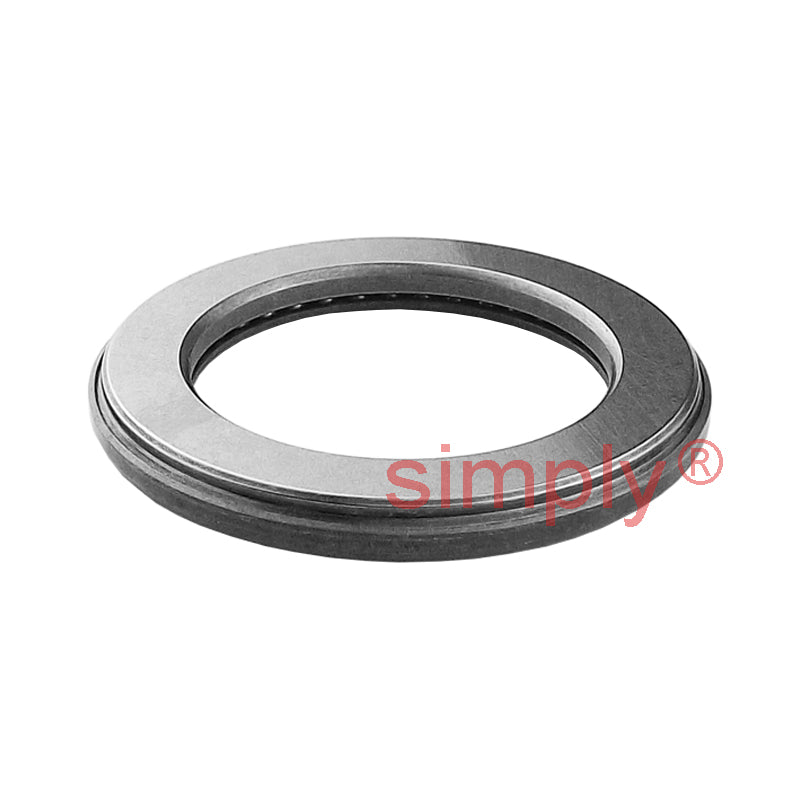

Major Brand AX54565 Thick Needle Roller Thrust Bearing 45x65x5mm Allow 2-3 Days
Major Brand AX54565 Thick Needle Roller Thrust Bearing 45x65x5mm Allow 2-3 Days
Regular price
Rs. 10,790.70
Regular price
Sale price
Rs. 10,790.70
Taxes included.
In stock
Price Break
10+
Rs. 9,603.72
19+
Rs. 9,064.19
29+
Rs. 8,956.28
39+
Rs. 8,848.37
49+
Rs. 8,740.47
74+
Rs. 8,632.56
99+
Rs. 8,093.03
199+
Rs. 7,985.12
249+
Rs. 7,877.21
499+
Rs. 7,769.30
999+
Rs. 7,553.49
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 45mm |
|---|---|
| D | 65mm |
| B1 | 5mm |
| Eb | 48mm |
| Ea | 59.9mm |
| Dynamic load | 21.8 kN |
| Static load | 109 kN |
| Speed rating in oil | 4500 rpm |
| Mass | 0.05 kg |
