SKU: AX53553-NADELLA

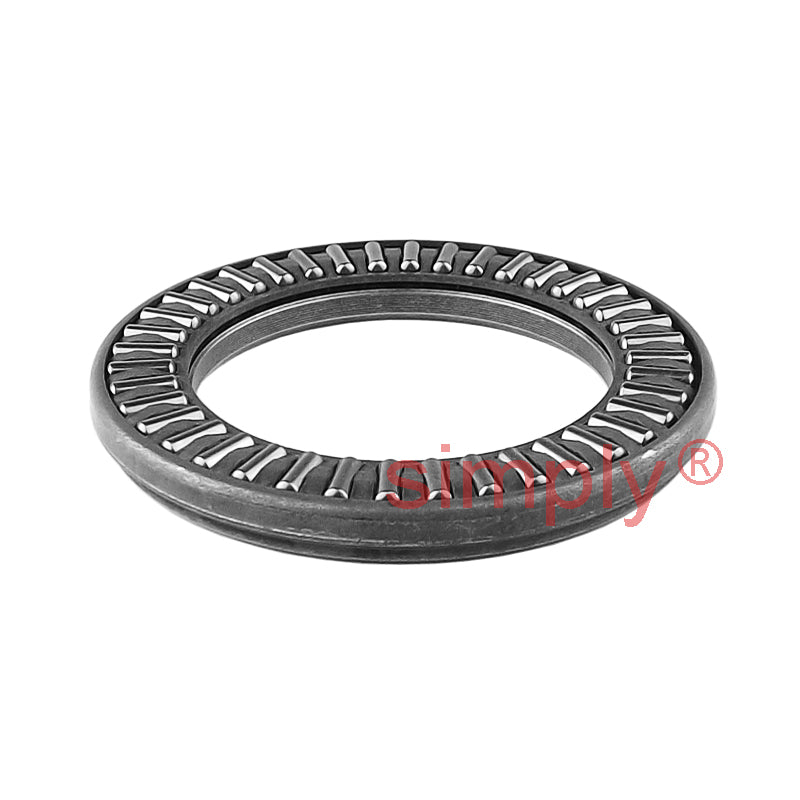

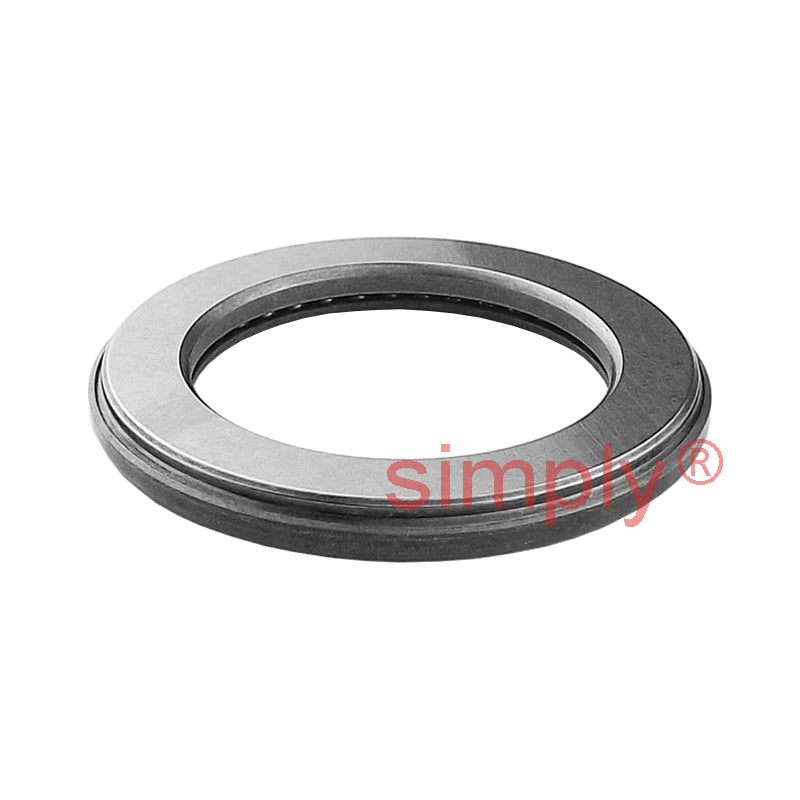

Nadella AX53553 Thick Needle Roller Thrust Bearing 35x53x5mm Allow 2-3 Days
Nadella AX53553 Thick Needle Roller Thrust Bearing 35x53x5mm Allow 2-3 Days
Regular price
Rs. 5,719.04
ex VAT
Regular price
Sale price
Rs. 5,719.04
ex VAT
In stock
Price Break
5+
Rs. 5,661.85
10+
Rs. 5,433.09
20+
Rs. 5,318.71
50+
Rs. 5,147.14
100+
Rs. 5,032.76
500+
Rs. 4,746.80
1000+
Rs. 4,003.33
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 53mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 53mm |
| B1 | 5mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.036 kg |
