SKU: AX41730-NADELLA

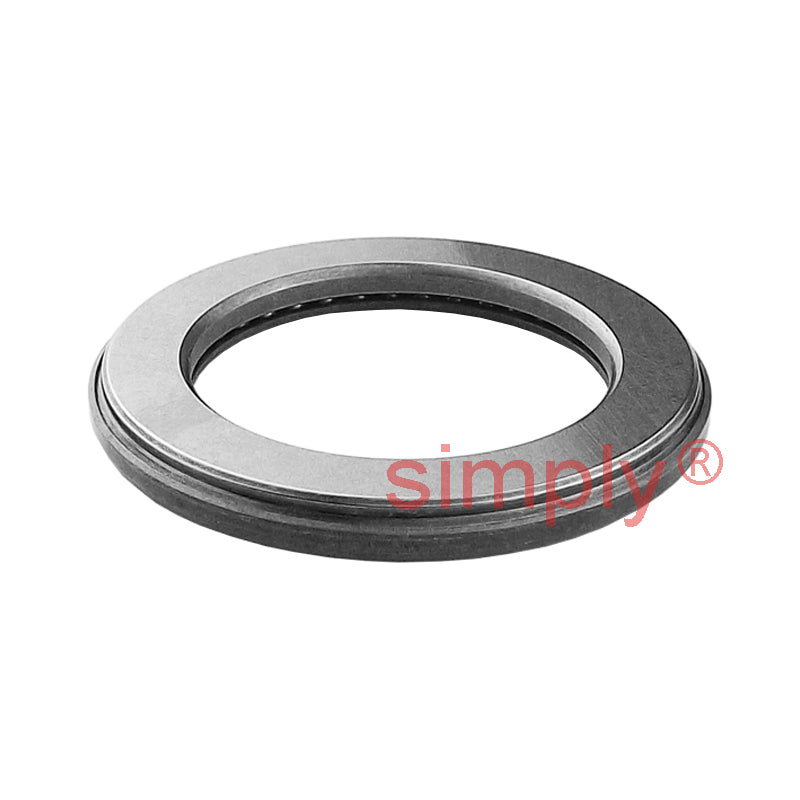

Nadella AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
Nadella AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
Regular price
Rs. 3,934.68
ex VAT
Regular price
Sale price
Rs. 3,934.68
ex VAT
In stock
Price Break
5+
Rs. 3,895.33
10+
Rs. 3,737.95
20+
Rs. 3,659.25
50+
Rs. 3,541.21
100+
Rs. 3,462.52
500+
Rs. 3,265.78
1000+
Rs. 2,754.28
Couldn't load pickup availability
Description
Description

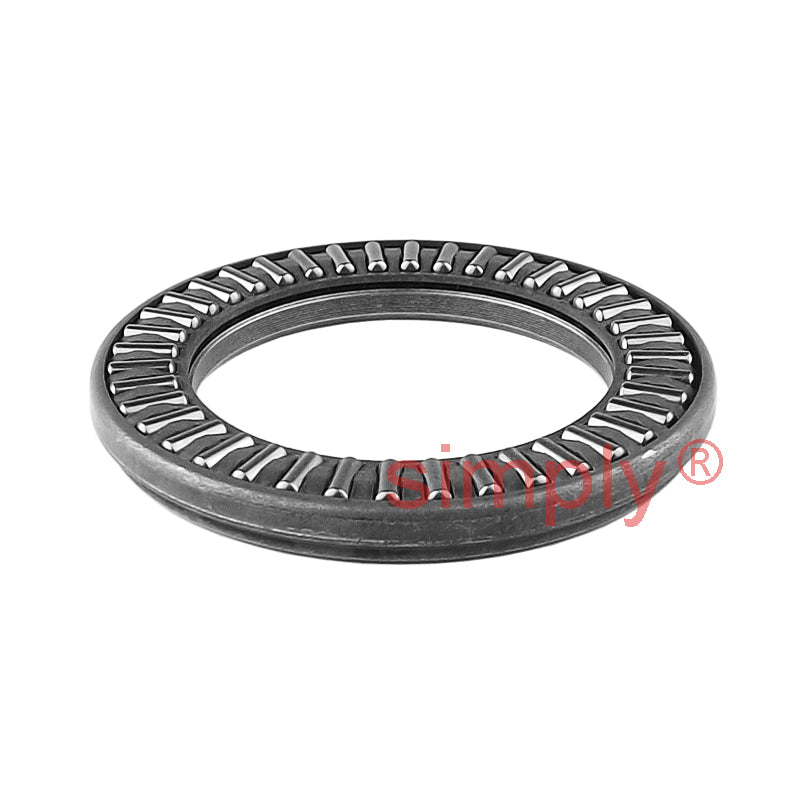

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 17mm |
|---|---|
| D | 30mm |
| B1 | 4mm |
| Eb | 19mm |
| Ea | 26.6mm |
| Dynamic load | 7.8 kN |
| Static load | 22 kN |
| Speed rating in oil | 10500 rpm |
| Mass | 0.01 kg |
