SKU: AX41226-NADELLA

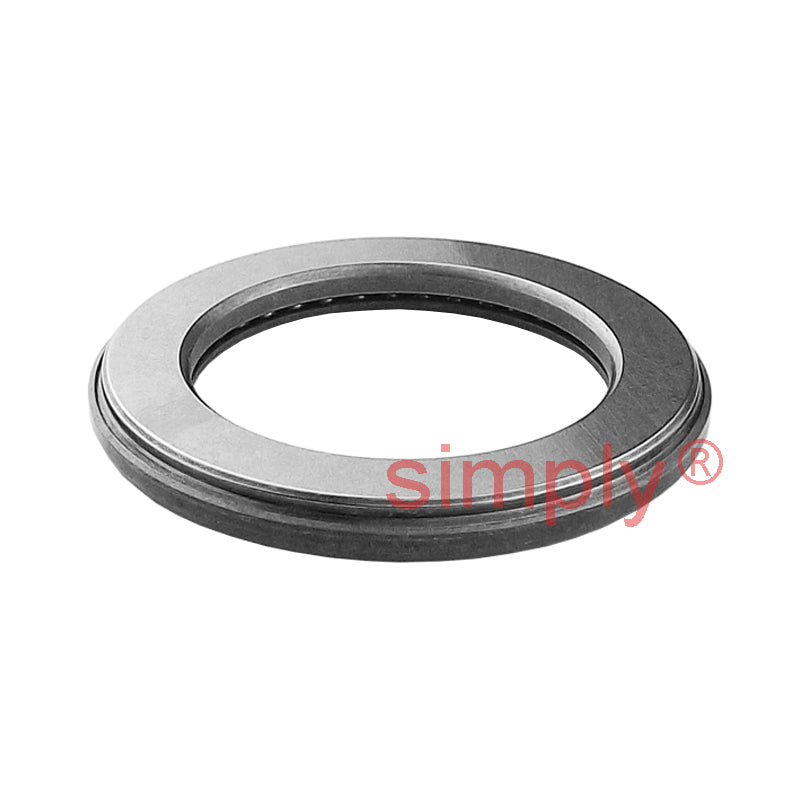

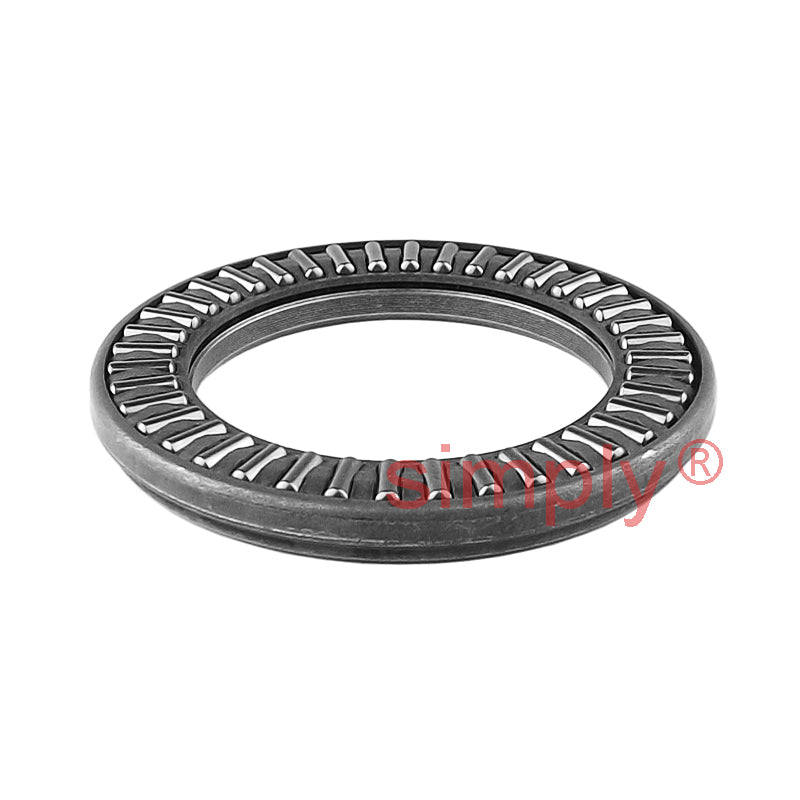

Nadella AX41226 Thick Needle Roller Thrust Bearing 12x26x4mm Allow 2-3 Days
Nadella AX41226 Thick Needle Roller Thrust Bearing 12x26x4mm Allow 2-3 Days
Regular price
Rs. 3,998.94
ex VAT
Regular price
Sale price
Rs. 3,998.94
ex VAT
In stock
Price Break
5+
Rs. 3,958.95
10+
Rs. 3,798.99
20+
Rs. 3,719.01
50+
Rs. 3,599.05
100+
Rs. 3,519.07
500+
Rs. 3,319.12
1000+
Rs. 2,799.26
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 4mm
Technical
Technical
| Dc1 | 12mm |
|---|---|
| D | 26mm |
| B1 | 4mm |
| Eb | 15mm |
| Ea | 22.6mm |
| Dynamic load | 6.9 kN |
| Static load | 17.7 kN |
| Speed rating in oil | 13000 rpm |
| Mass | 0.01 kg |
