SKU: AX3553-MB

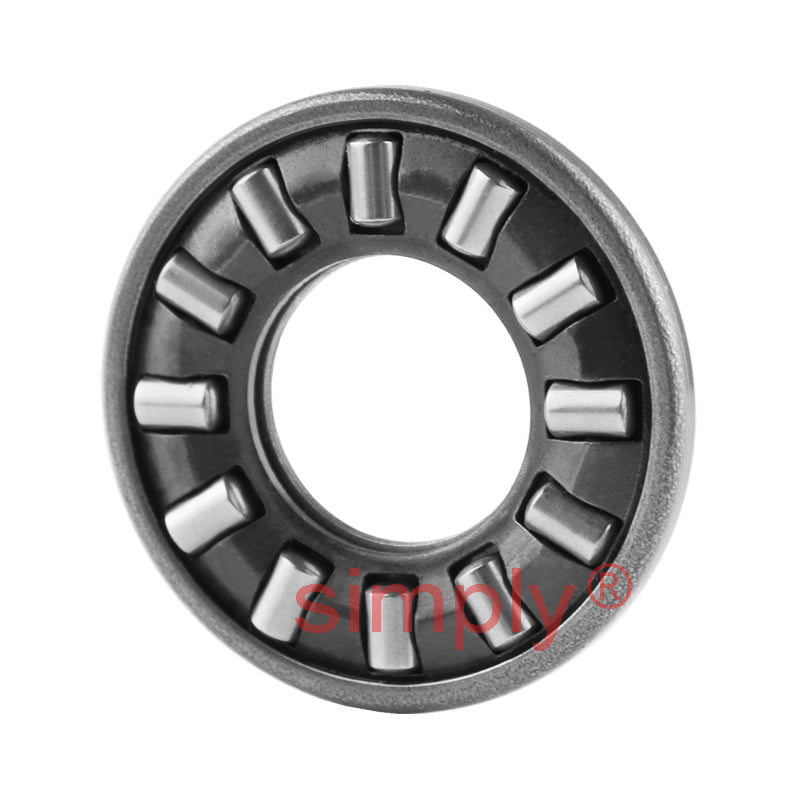

Major Brand AX3553 Thin Needle Roller Thrust Bearing 35x53x2.8mm
Major Brand AX3553 Thin Needle Roller Thrust Bearing 35x53x2.8mm
Regular price
Rs. 1,666.87
ex VAT
Regular price
Sale price
Rs. 1,666.87
ex VAT
In stock
Price Break
10+
Rs. 1,483.51
19+
Rs. 1,400.17
29+
Rs. 1,383.50
39+
Rs. 1,366.83
49+
Rs. 1,350.16
74+
Rs. 1,333.50
99+
Rs. 1,250.15
199+
Rs. 1,233.48
249+
Rs. 1,216.82
499+
Rs. 1,200.15
999+
Rs. 1,166.81
Couldn't load pickup availability
Description
Description

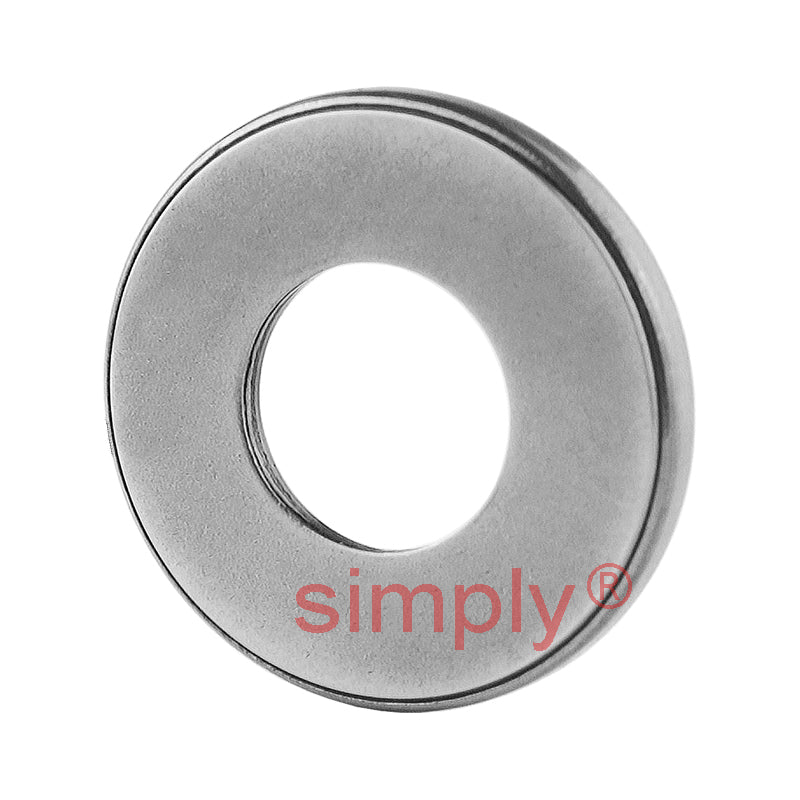

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 53mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 53mm |
| B1 | 2.8mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.019 kg |
