SKU: AX3.5917-NADELLA

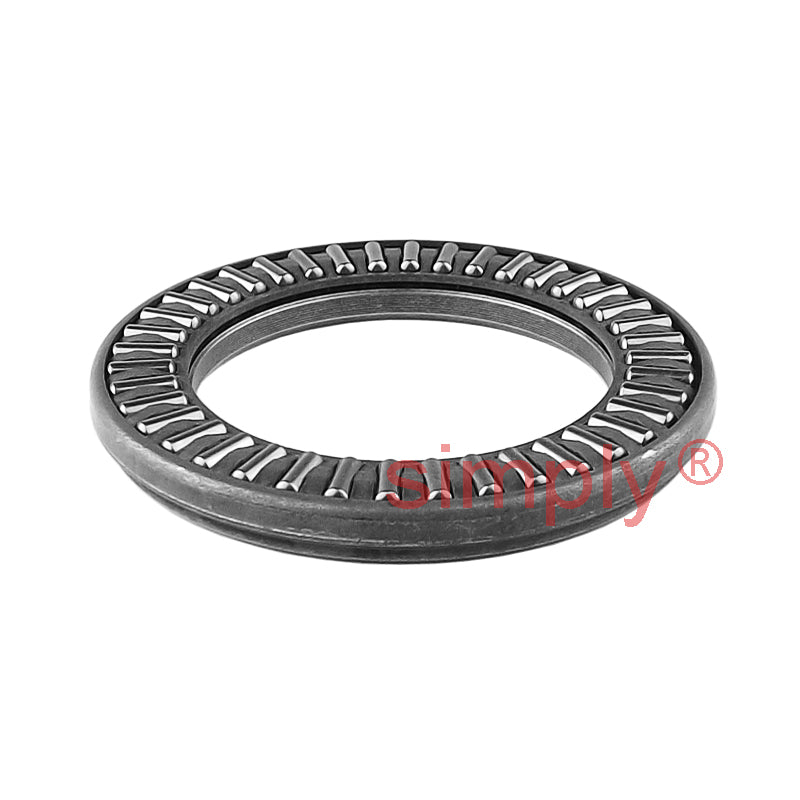

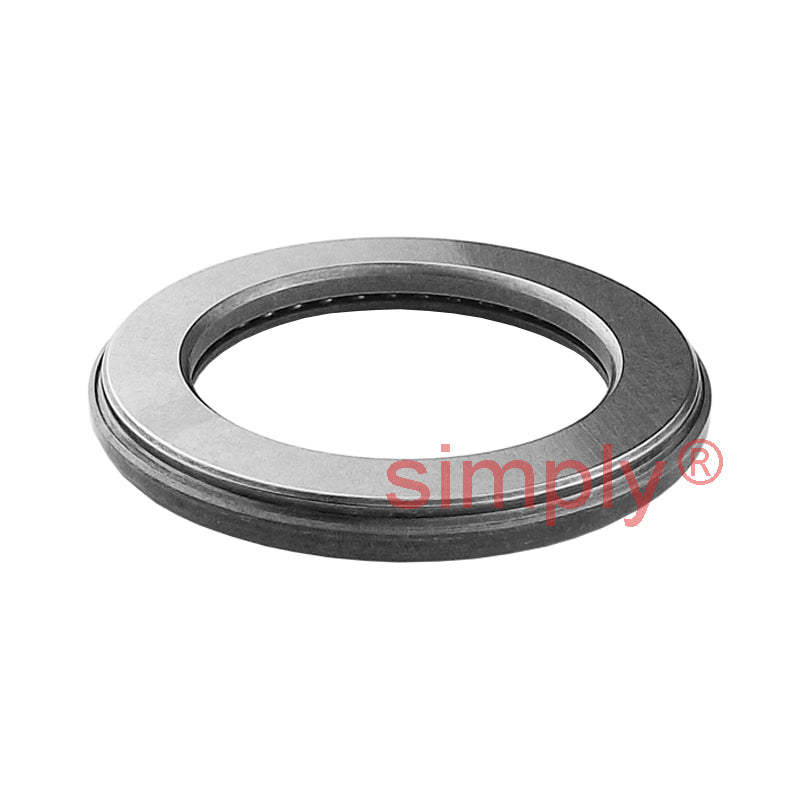

Nadella AX3.5917 Thick Needle Roller Thrust Bearing 9x17x3.5mm Allow 2-3 Day
Nadella AX3.5917 Thick Needle Roller Thrust Bearing 9x17x3.5mm Allow 2-3 Day
Regular price
Rs. 7,138.48
ex VAT
Regular price
Sale price
Rs. 7,138.48
ex VAT
In stock
Price Break
5+
Rs. 7,067.10
10+
Rs. 6,781.56
20+
Rs. 6,638.79
50+
Rs. 6,424.63
100+
Rs. 6,281.86
500+
Rs. 5,924.94
1000+
Rs. 4,996.94
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 9mm |
|---|---|
| D | 17mm |
| B1 | 3.5mm |
| Eb | 10.3mm |
| Ea | 14.9mm |
| Dynamic load | 4.05 kN |
| Static load | 9.5 kN |
| Speed rating in oil | 19000 rpm |
| Mass | 0.004 kg |
