SKU: AX3.5816-MB

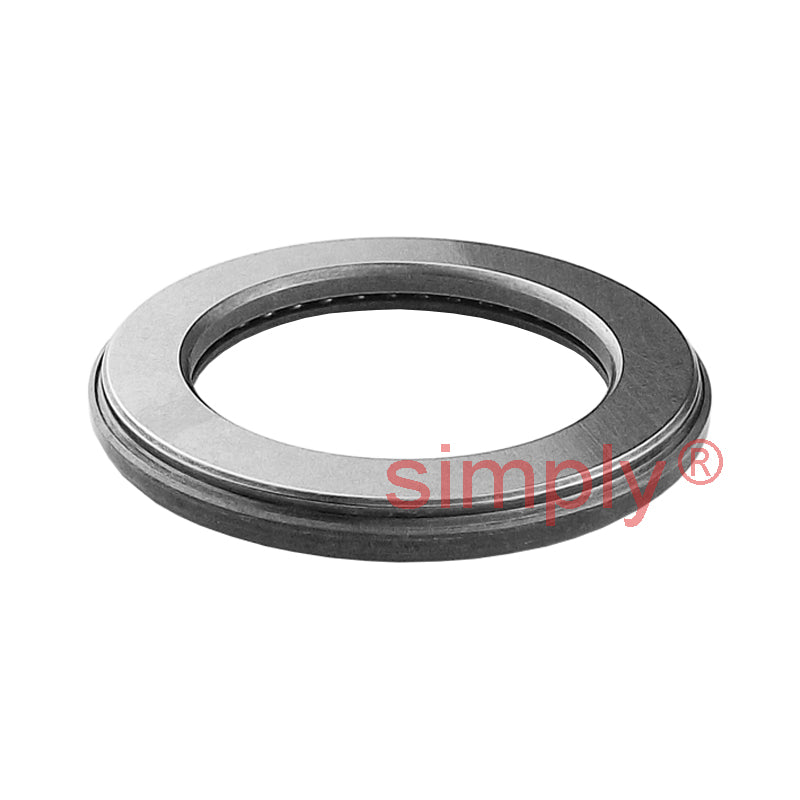

Major Brand AX3.5816 Thick Needle Roller Thrust Bearing 8x16x3.5mm Allow 2-3 Days
Major Brand AX3.5816 Thick Needle Roller Thrust Bearing 8x16x3.5mm Allow 2-3 Days
Regular price
Rs. 8,317.38
Regular price
Sale price
Rs. 8,317.38
Taxes included.
In stock
Price Break
10+
Rs. 7,402.47
19+
Rs. 6,986.60
29+
Rs. 6,903.43
39+
Rs. 6,820.25
49+
Rs. 6,737.08
74+
Rs. 6,653.90
99+
Rs. 6,238.04
199+
Rs. 6,154.86
249+
Rs. 6,071.69
499+
Rs. 5,988.51
999+
Rs. 5,822.17
Description
Description

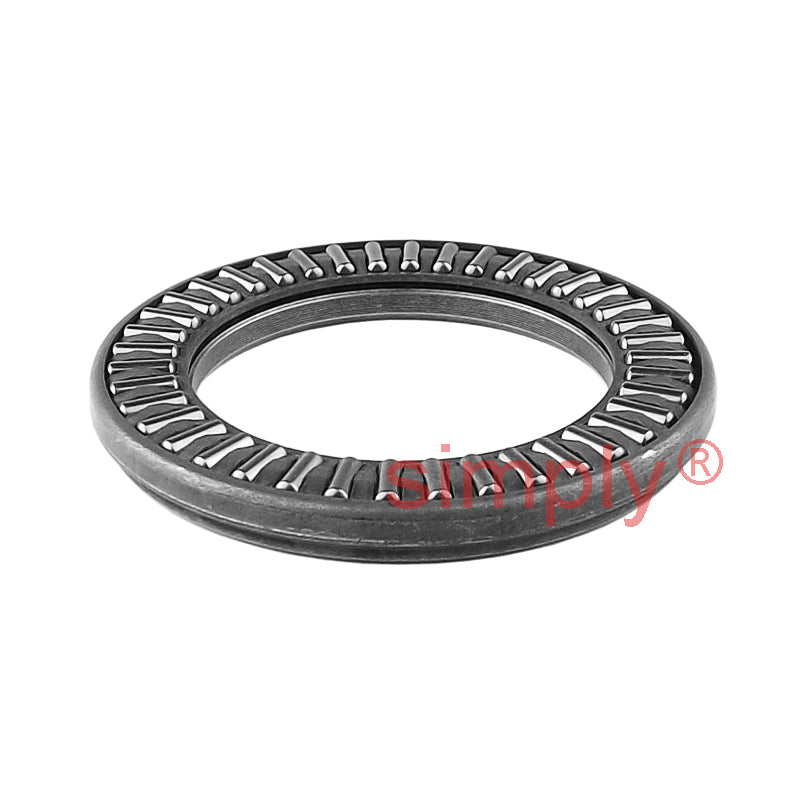

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 8mm |
|---|---|
| D | 16mm |
| B1 | 3.5mm |
| Eb | 9.3mm |
| Ea | 13.9mm |
| Dynamic load | 3.7 kN |
| Static load | 8.3 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.003 kg |
