SKU: AX3.580105-NADELLA

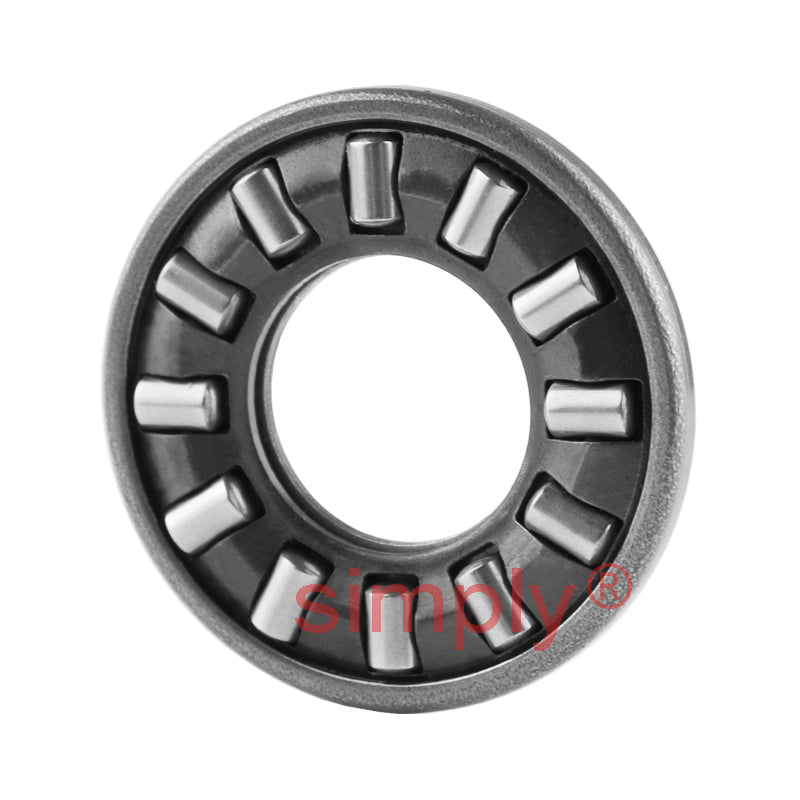

Nadella AX3.580105 Thin Needle Roller Thrust Bearing 80x105x3.5mm Allow 2-3
Nadella AX3.580105 Thin Needle Roller Thrust Bearing 80x105x3.5mm Allow 2-3
Regular price
Rs. 22,887.78
ex VAT
Regular price
Sale price
Rs. 22,887.78
ex VAT
In stock
Price Break
5+
Rs. 22,658.90
10+
Rs. 21,743.39
20+
Rs. 21,285.64
50+
Rs. 20,599.00
100+
Rs. 20,141.25
500+
Rs. 18,996.86
1000+
Rs. 16,021.45
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 105mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 80mm |
|---|---|
| D | 105mm |
| B1 | 3.5mm |
| Eb | 83.5mm |
| Ea | 99.2mm |
| Dynamic load | 36.5 kN |
| Static load | 253 kN |
| Speed rating in oil | 2700 rpm |
| Mass | 0.069 kg |
