SKU: AX15240300-MB

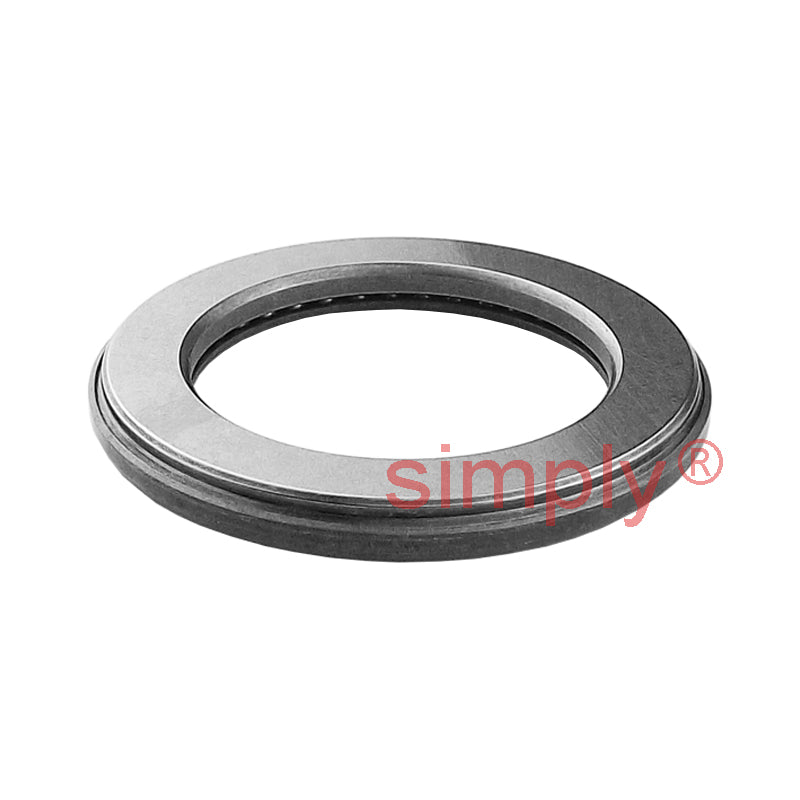

Major Brand AX15240300 Thick Needle Roller Thrust Bearing 240x300x15mm Allow 2-3 Days
Major Brand AX15240300 Thick Needle Roller Thrust Bearing 240x300x15mm Allow 2-3 Days
Regular price
Rs. 750,081.16
Regular price
Sale price
Rs. 750,081.16
Taxes included.
In stock
Price Break
10+
Rs. 667,572.23
19+
Rs. 630,068.17
29+
Rs. 622,567.36
39+
Rs. 615,066.55
49+
Rs. 607,565.74
74+
Rs. 600,064.93
99+
Rs. 562,560.87
199+
Rs. 555,060.06
249+
Rs. 547,559.25
499+
Rs. 540,058.44
999+
Rs. 525,056.81
Description
Description

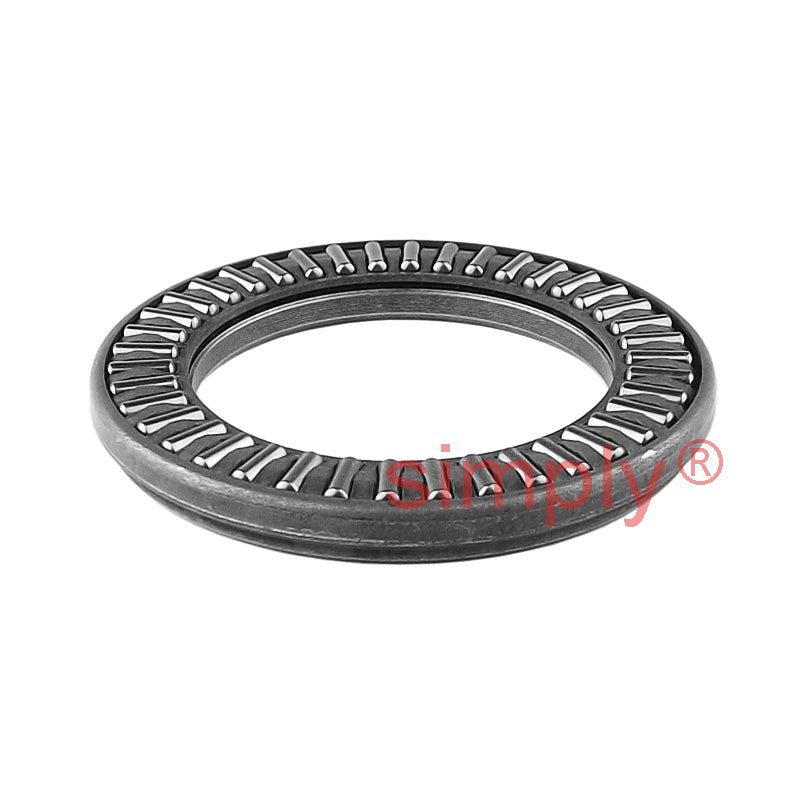

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 300mm
- Width:
- 15mm
Technical
Technical
| Dc1 | 240mm |
|---|---|
| D | 300mm |
| B1 | 15mm |
| Eb | 246mm |
| Ea | 286mm |
| Dynamic load | 280 kN |
| Static load | 2240 kN |
| Speed rating in oil | 900 rpm |
| Mass | 2.3 kg |
