SKU: AX11130170-NADELLA

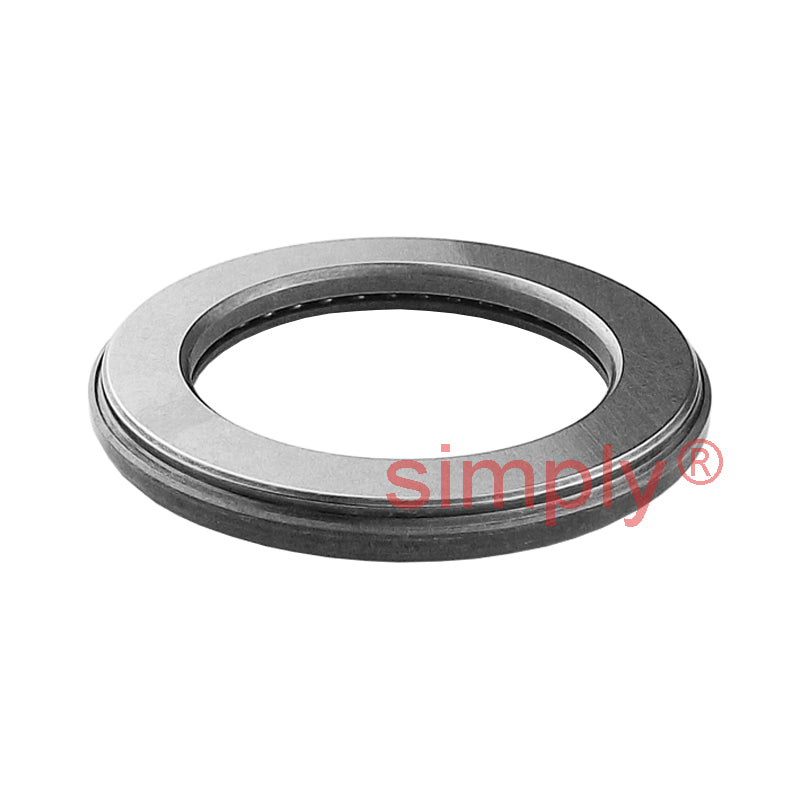

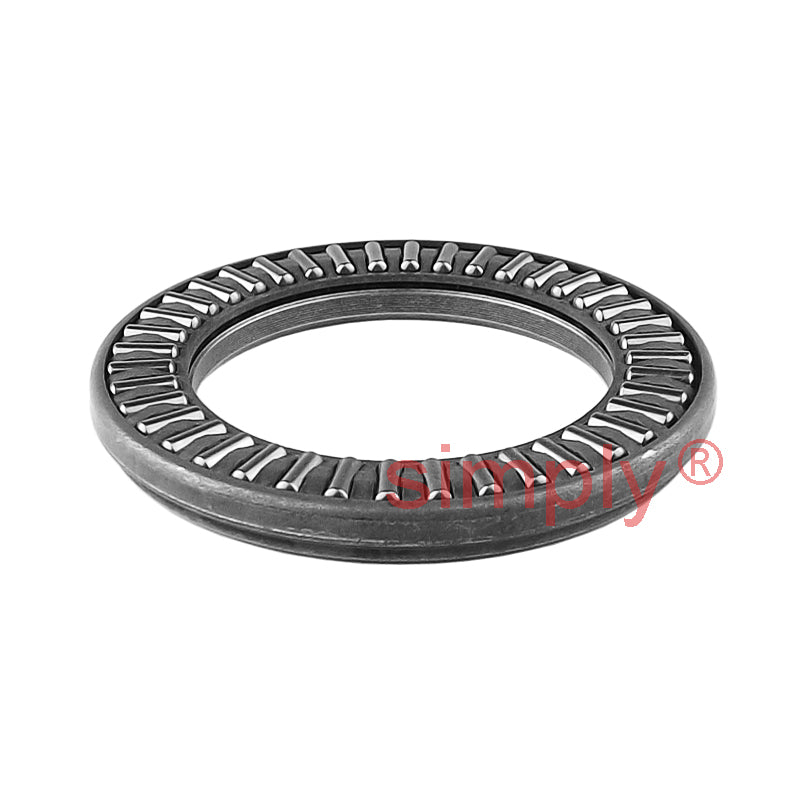

Nadella AX11130170 Thick Needle Roller Thrust Bearing 130x170x11mm Allow 2-3
Nadella AX11130170 Thick Needle Roller Thrust Bearing 130x170x11mm Allow 2-3
Regular price
Rs. 71,515.12
ex VAT
Regular price
Sale price
Rs. 71,515.12
ex VAT
In stock
Price Break
5+
Rs. 70,799.97
10+
Rs. 67,939.36
20+
Rs. 66,509.06
50+
Rs. 64,363.61
100+
Rs. 62,933.31
500+
Rs. 59,357.55
1000+
Rs. 50,060.58
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 11mm
Technical
Technical
| Dc1 | 130mm |
|---|---|
| D | 170mm |
| B1 | 11mm |
| Eb | 135mm |
| Ea | 161mm |
| Dynamic load | 106 kN |
| Static load | 710 kN |
| Speed rating in oil | 1700 rpm |
| Mass | 0.66 kg |
