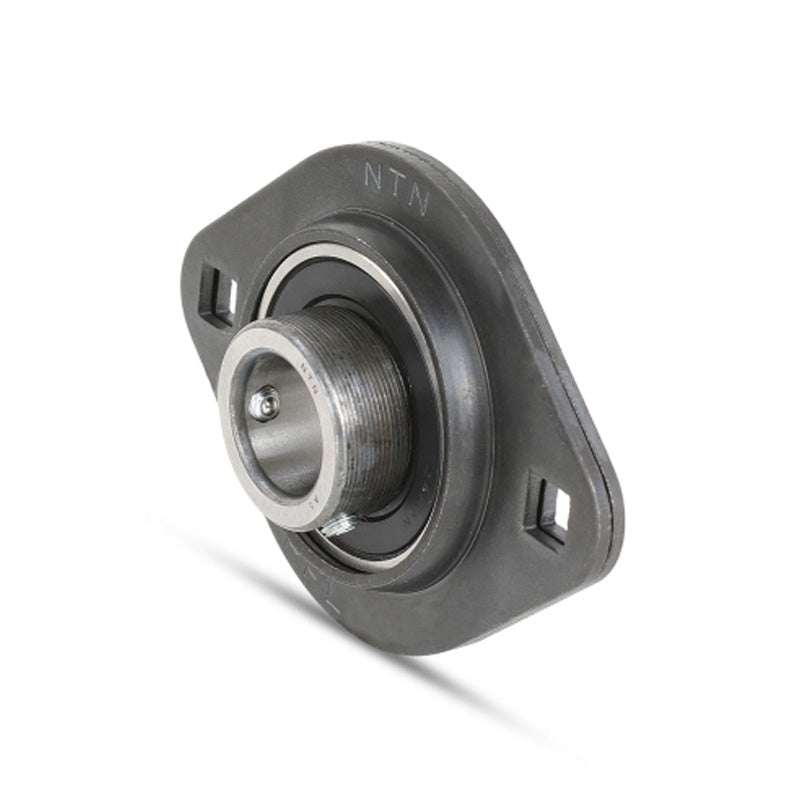

• NTN ASPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
1 1

SKU: ASPFL208-NTN

NTN ASPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days

NTN ASPFL208 Oval 2 Bolt Pressed Steel Bearing Housing with 40mm Insert - Allow 2-3 Days
Rs. 3,967.30
Rs. 3,967.30
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 3,927.63
10+ Rs. 3,768.94
20+ Rs. 3,689.59
50+ Rs. 3,570.57
100+ Rs. 3,491.22
500+ Rs. 3,292.86
1000+ Rs. 2,777.11
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately.
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
ASPFL
Bolt Hole Centres:
119mm
Technical
--- Dimensions
Shaft diameter 40mm
H 148mm
J 119mm
A<sub>1</sub> 6.8mm
N 13.5mm
A 21mm
L 100mm
B 38mm
S 9mm
H<sub>1</sub> min 91mm
Fixing bolt M12
--- Load rating
Max load recommended radial 6000 N
Max load recommended axial 3000 N
--- Unit information
Mass 0.8 kg
