SKU: ASFD203-NTN

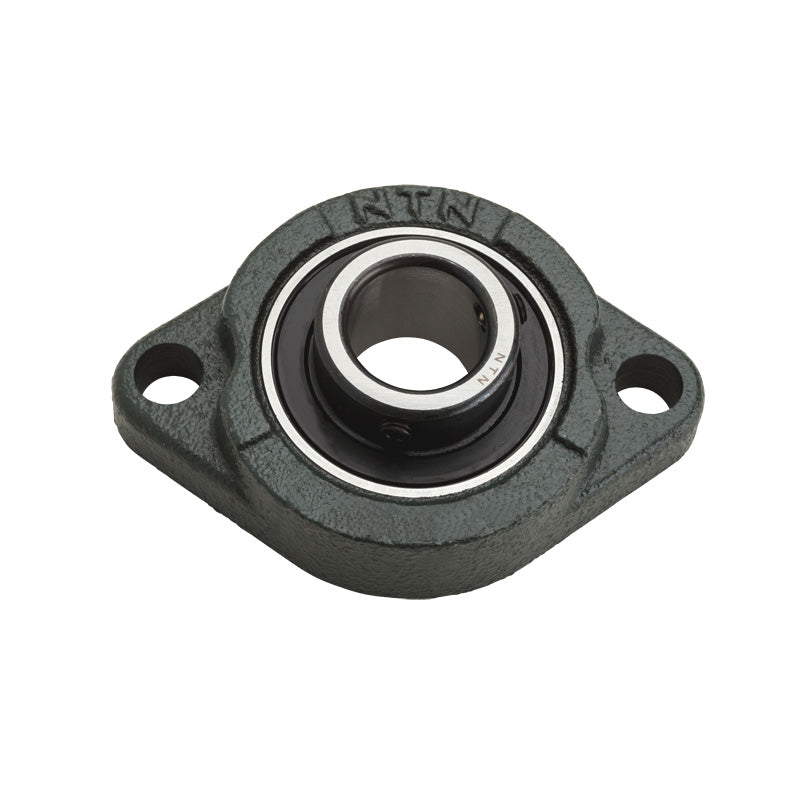

NTN ASFD203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
NTN ASFD203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,400.18
Regular price
Sale price
Rs. 3,400.18
Taxes included.
In stock
Price Break
5+
Rs. 3,366.18
10+
Rs. 3,230.17
20+
Rs. 3,162.17
50+
Rs. 3,060.16
100+
Rs. 2,992.16
500+
Rs. 2,822.15
1000+
Rs. 2,380.13
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASFD
- Bolt Hole Centres:
- 63mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 81mm |
| J | 63mm |
| A<sub>2</sub> | 8.5mm |
| A | 15mm |
| N | 7mm |
| L | 59mm |
| A<sub>0</sub> | 24.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.3 kg |
