SKU: ASFB204-NTN

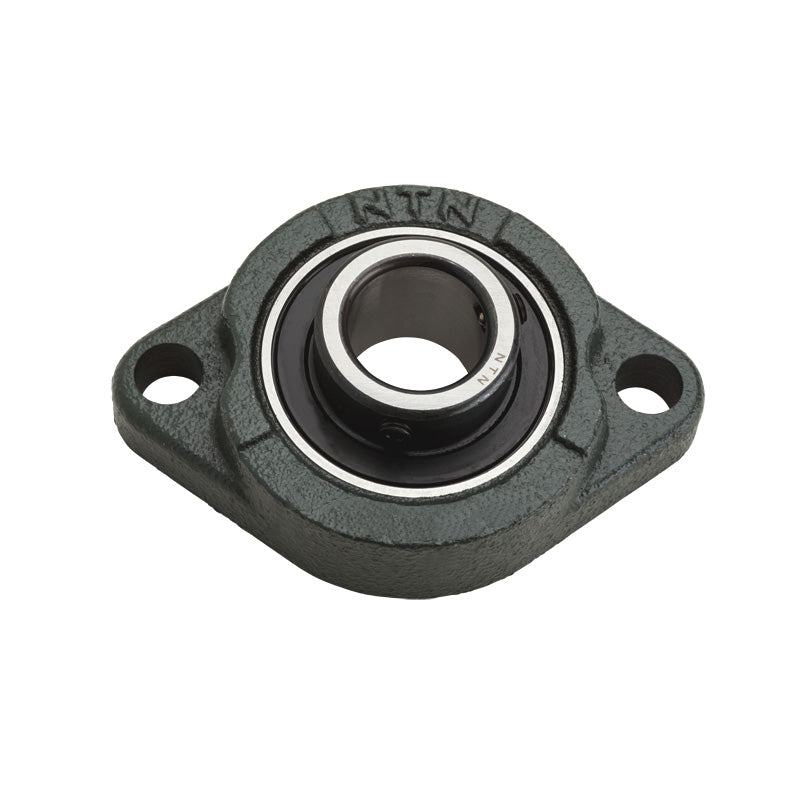

NTN ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert
NTN ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert
Regular price
Rs. 2,923.95
Regular price
Sale price
Rs. 2,923.95
Taxes included.
In stock
Price Break
10+
Rs. 2,602.32
19+
Rs. 2,456.12
29+
Rs. 2,426.88
39+
Rs. 2,397.64
49+
Rs. 2,368.40
74+
Rs. 2,339.16
99+
Rs. 2,192.96
199+
Rs. 2,163.72
249+
Rs. 2,134.48
499+
Rs. 2,105.24
999+
Rs. 2,046.77
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- ASFB
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 90mm |
| J | 71.5mm |
| A<sub>2</sub> | 11mm |
| A<sub>1</sub> | 11mm |
| A | 20mm |
| N | 10mm |
| L | 61mm |
| A<sub>0</sub> | 29mm |
| B | 25mm |
| S | 7mm |
| Fixing bolt | M8 |
| Mass | 0.3 kg |
