SKU: ASFB203-NTN

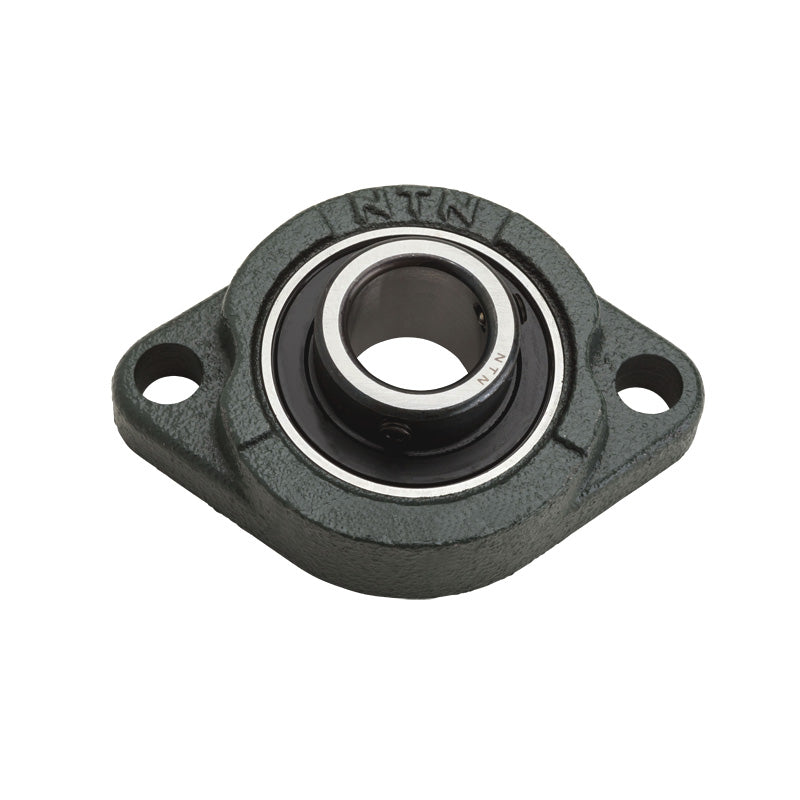

NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,552.69
Regular price
Sale price
Rs. 2,552.69
Taxes included.
In stock
Price Break
5+
Rs. 2,527.16
10+
Rs. 2,425.06
20+
Rs. 2,374.00
50+
Rs. 2,297.42
100+
Rs. 2,246.37
500+
Rs. 2,118.73
1000+
Rs. 1,786.88
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASFB
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 81mm |
| J | 63.5mm |
| A<sub>2</sub> | 9.5mm |
| A<sub>1</sub> | 9.5mm |
| A | 18mm |
| N | 7mm |
| L | 56mm |
| A<sub>0</sub> | 25.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.2 kg |
