SKU: AL.1218-12.FL.MOS2

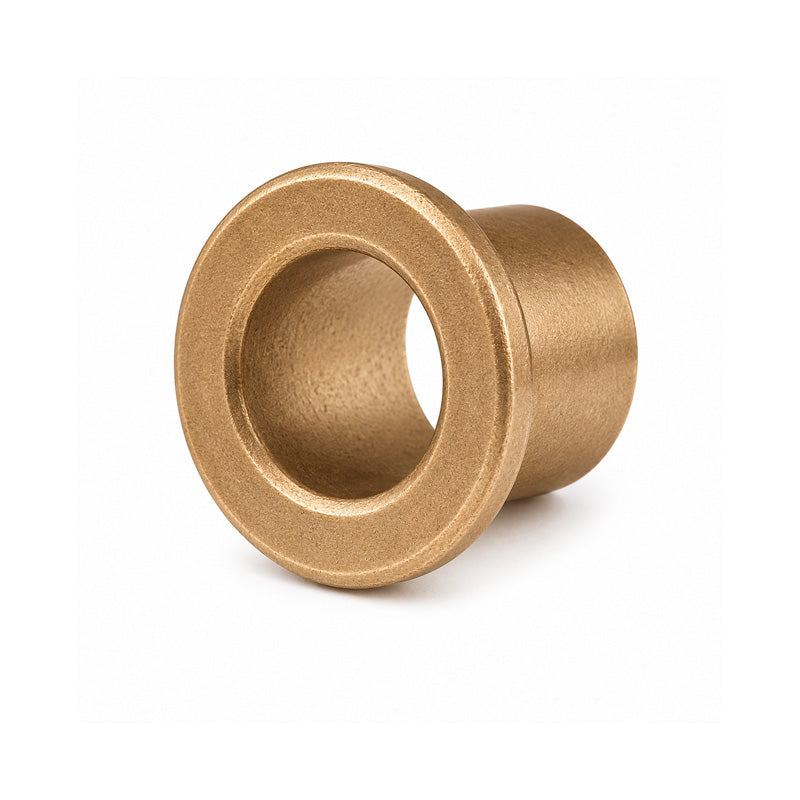

AL1218-12 Oil Filled Bronze Flanged Bush with MOS2 Additive 12x18x12mm
In stock
Price Break
Description
Oil Filled Bronze Bushes: Made in a variety of styles from bronze, graphite and several other metallic powders formed to shape by the sintering process and then soaked in oil. These simple bush-style bearings have an extended range of applications but are particularly suited to function in the following conditions; extreme high/low temperatures1, high/low speed applications, corrosive environments, low maintenance applications etc.
1 These bushes are generally implanted with grease which has a temperature range of -20 to +90 deg C. Contact our Customer Support Team for more options to compensate for medium and wide range temperatures.
Benefits: Inexpensive, noiseless operation, self-lubrication, low maintenance costs.
- Brand / Quality:
- Oilite - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Length:
- 12mm
Technical
| Basic Dia d | 12mm |
|---|---|
| Min I/D | 12.006mm |
| Max I/D | 12.024mm |
| Basic O/D D | 18mm |
| Min O/D | 18.028mm |
| Max O/D | 18.046mm |
| Dia F | 24mm |
| Width e | 3mm |
| Length L | 12mm |
