SKU: AGR-06-10-FLEX

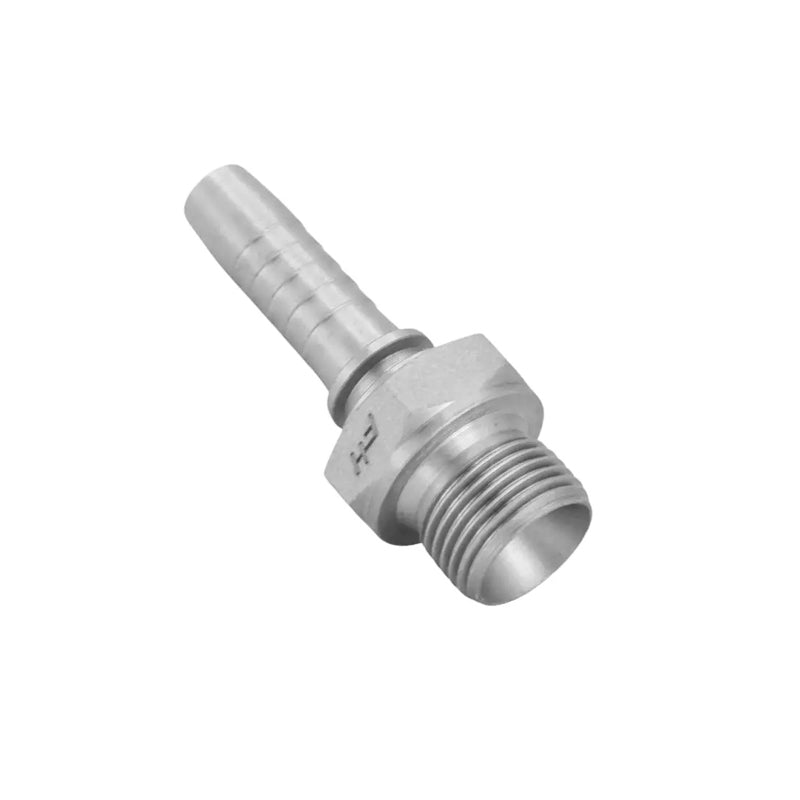

FLEXEQUIP/VOSS 3/8 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
FLEXEQUIP/VOSS 3/8 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
Regular price
Rs. 527.44
Regular price
Sale price
Rs. 527.44
Taxes included.
In stock
Price Break
10+
Rs. 469.42
19+
Rs. 443.05
29+
Rs. 437.78
39+
Rs. 432.50
49+
Rs. 427.23
74+
Rs. 421.95
99+
Rs. 395.58
199+
Rs. 390.31
249+
Rs. 385.03
499+
Rs. 379.76
999+
Rs. 369.21
Share this product
Description
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 3/8 inch BSP
- Length:
- 56mm
- Type:
- AGR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
Technical
| Hose Bore | 3/8 inch |
|---|---|
| Thread (d2) | 3/8 inch |
| DN Size | 10mm |
| Total Length (lg) | 56mm |
| Length (lh) | 14mm |
| Cut Off (lx) | 26mm |
| Bore Size (dx) | 7mm |
| Nut Size (SW) | 22mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.05 kg |
