SKU: AELPFL208-NTN

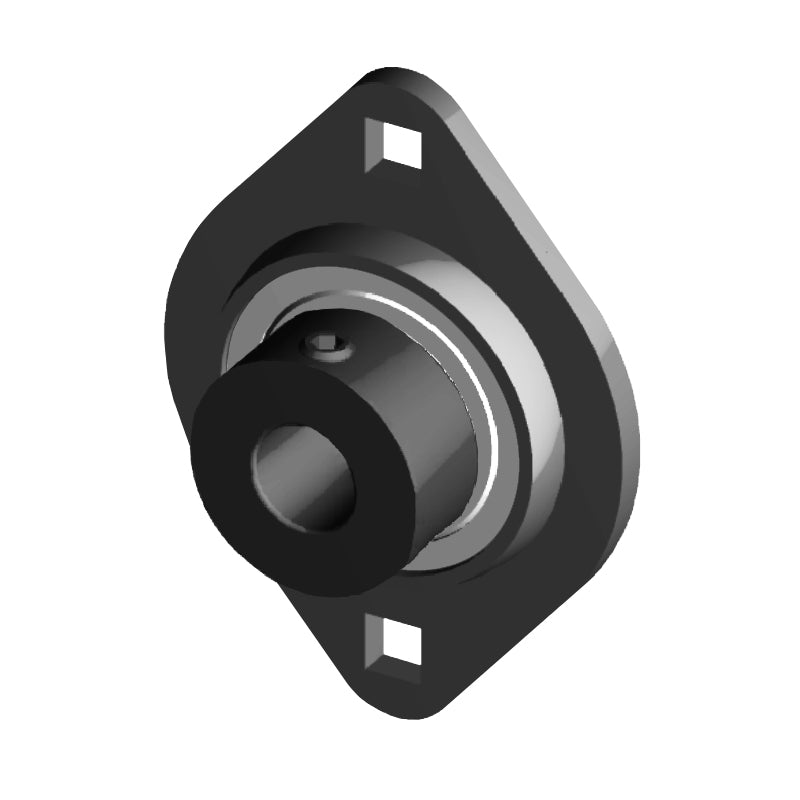

NTN AELPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN AELPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 4,539.55
Regular price
Sale price
Rs. 4,539.55
Taxes included.
In stock
Price Break
5+
Rs. 4,494.15
10+
Rs. 4,312.57
20+
Rs. 4,221.78
50+
Rs. 4,085.60
100+
Rs. 3,994.80
500+
Rs. 3,767.83
1000+
Rs. 3,177.69
Description
Description
|
AELPFL200 Series 2 Bolt Pressed Steel Oval Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- AELPFL
- Bolt Hole Centres:
- 119mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 148mm |
| J | 119mm |
| A<sub>1</sub> | 6.8mm |
| N | 13.5mm |
| A | 21mm |
| L | 100mm |
| B<sub>1</sub> | 43.7mm |
| S | 11mm |
| H<sub>1</sub> | 91mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Max load recommended radial | 6000 N |
| Max load recommended axial | 3000 N |
| --- | Unit information |
| Mass | 1 kg |
