SKU: 81224M.EU

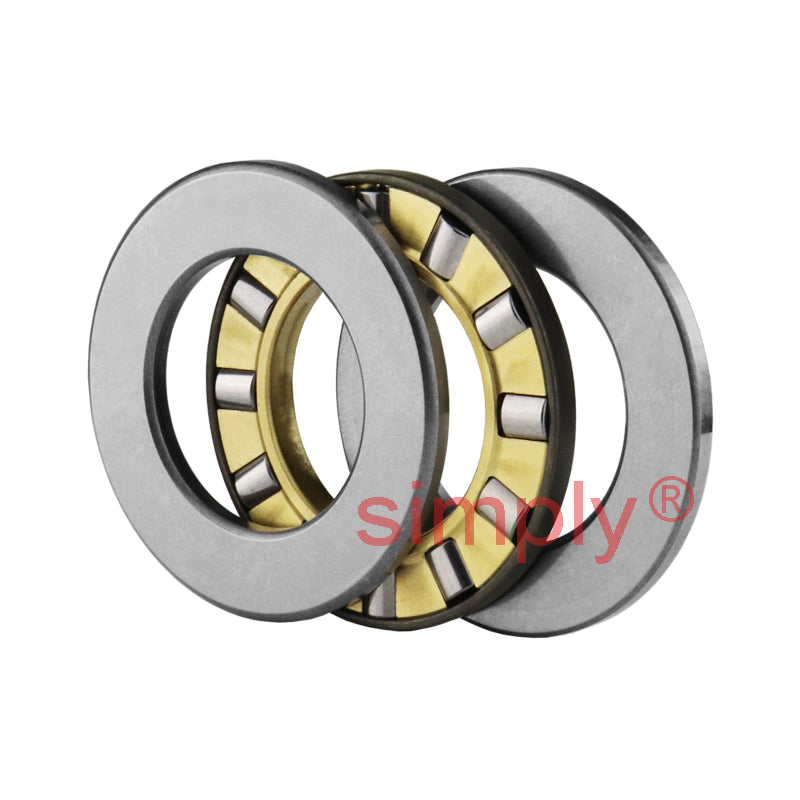

Premier Budget 81224M Cylindrical Roller Thrust Bearing with Brass Cage 120x170x39mm
Premier Budget 81224M Cylindrical Roller Thrust Bearing with Brass Cage 120x170x39mm
Regular price
Rs. 29,288.13
Regular price
Sale price
Rs. 29,288.13
Taxes included.
Equivalent to: AZ12017039 K81224M 81224M
In stock
Price Break
10+
Rs. 26,066.44
19+
Rs. 24,602.03
29+
Rs. 24,309.15
39+
Rs. 24,016.27
49+
Rs. 23,723.39
74+
Rs. 23,430.50
99+
Rs. 21,966.10
199+
Rs. 21,673.22
249+
Rs. 21,380.33
499+
Rs. 21,087.45
999+
Rs. 20,501.69
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ12017039 K81224M 81224M
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 170mm |
| H | 39mm |
| Dynamic load C | 270 kN |
| Static load Co | 1100 kN |
| Fatigue load limit Pu | 104 kN |
| Min load factor A | 0.074 |
| Reference speed | 800 rpm |
| Limiting speed | 1600 rpm |
| Cage reference | K81224M |
| Weight | 2.55 kg |
