SKU: 81220.TN.EU

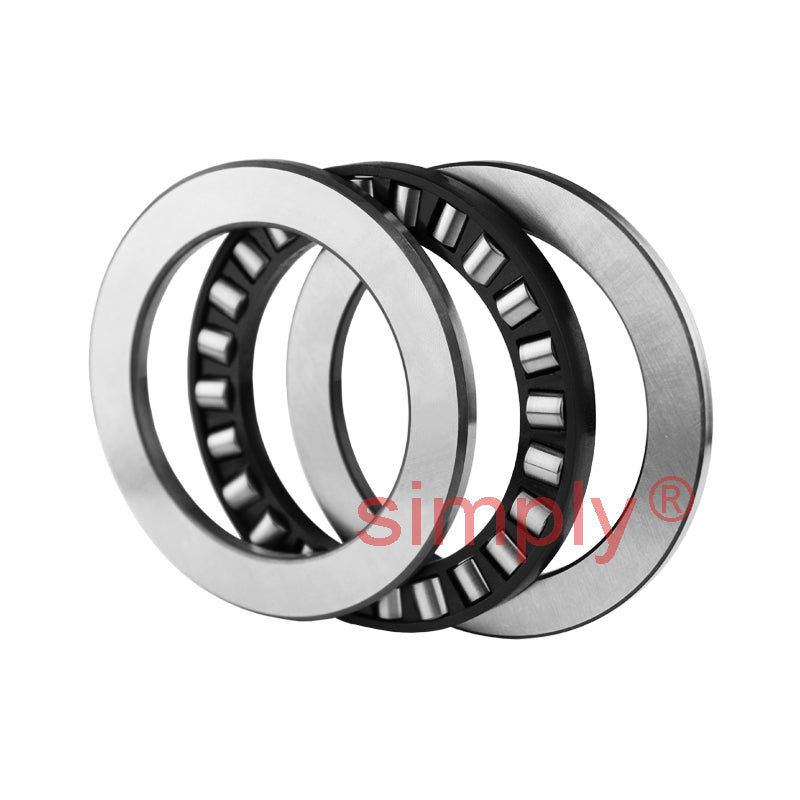

Premier Budget 81220TN Cylindrical Roller Thrust Bearing with Nylon Cage 100x150x38mm
Premier Budget 81220TN Cylindrical Roller Thrust Bearing with Nylon Cage 100x150x38mm
Regular price
Rs. 16,519.54
Regular price
Sale price
Rs. 16,519.54
Taxes included.
Equivalent to: AZ10015038 K81220TN 81220TV
In stock
Price Break
10+
Rs. 14,702.39
19+
Rs. 13,876.41
29+
Rs. 13,711.22
39+
Rs. 13,546.02
49+
Rs. 13,380.83
74+
Rs. 13,215.63
99+
Rs. 12,389.66
199+
Rs. 12,224.46
249+
Rs. 12,059.26
499+
Rs. 11,894.07
999+
Rs. 11,563.68
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ10015038 K81220TN 81220TV
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 38mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| H | 38mm |
| Dynamic load C | 270 kN |
| Static load Co | 1060 kN |
| Fatigue load limit Pu | 104 kN |
| Min load factor A | 0.055 |
| Reference speed | 900 rpm |
| Limiting speed | 1800 rpm |
| Cage reference | K81220TN |
| Weight | 2.2 kg |
